When planning a bathroom renovation, wet room installation, or tiled floor project, the foundation behind your tiles is just as important as the tiles themselves. Traditional plasterboard and plywood may seem like convenient options, but they often struggle in environments exposed to moisture, heavy loads, and constant temperature changes.

This is where tile backer boards come in.

Thermopanel Tile Backer Boards are specifically designed to provide a strong, waterproof, and thermally efficient substrate for tiling applications. Whether you're a professional installer or tackling a home renovation project yourself, choosing the right backer board can make the difference between a long-lasting tiled installation and one that develops issues over time.

In this guide, we’ll explore what tile backer boards are, why they matter, and why Thermopanel boards have become a trusted choice for bathroom, underfloor heating, and tiling installations.

What Are Tile Backer Boards?

Tile backer boards are rigid construction panels designed to create a stable surface for tiles. Unlike standard plasterboard or timber sheets, they are engineered to resist moisture, improve insulation, and support the weight of tiled finishes.

They are commonly used in:

  • Bathrooms
  • Wet rooms
  • Shower enclosures
  • Kitchen splashback areas
  • Tiled floors
  • Underfloor heating systems
  • Wall insulation projects

A high-quality tile backer board prevents movement beneath tiles, reducing the risk of cracked grout lines, loose tiles, and water damage.

Why Standard Plasterboard Isn’t Ideal for Tiling

Many older properties still use plasterboard behind tiled areas, but this approach comes with several disadvantages.

Standard plasterboard:

  • Absorbs moisture over time
  • Can weaken in wet environments
  • Offers very little thermal insulation
  • May flex under weight
  • Can contribute to mould and damp issues

In high-moisture areas such as showers and wet rooms, using a waterproof tile backer board is considered best practice.

Thermopanel boards are designed specifically to overcome these common problems.

What Makes Thermopanel Tile Backer Boards Different?

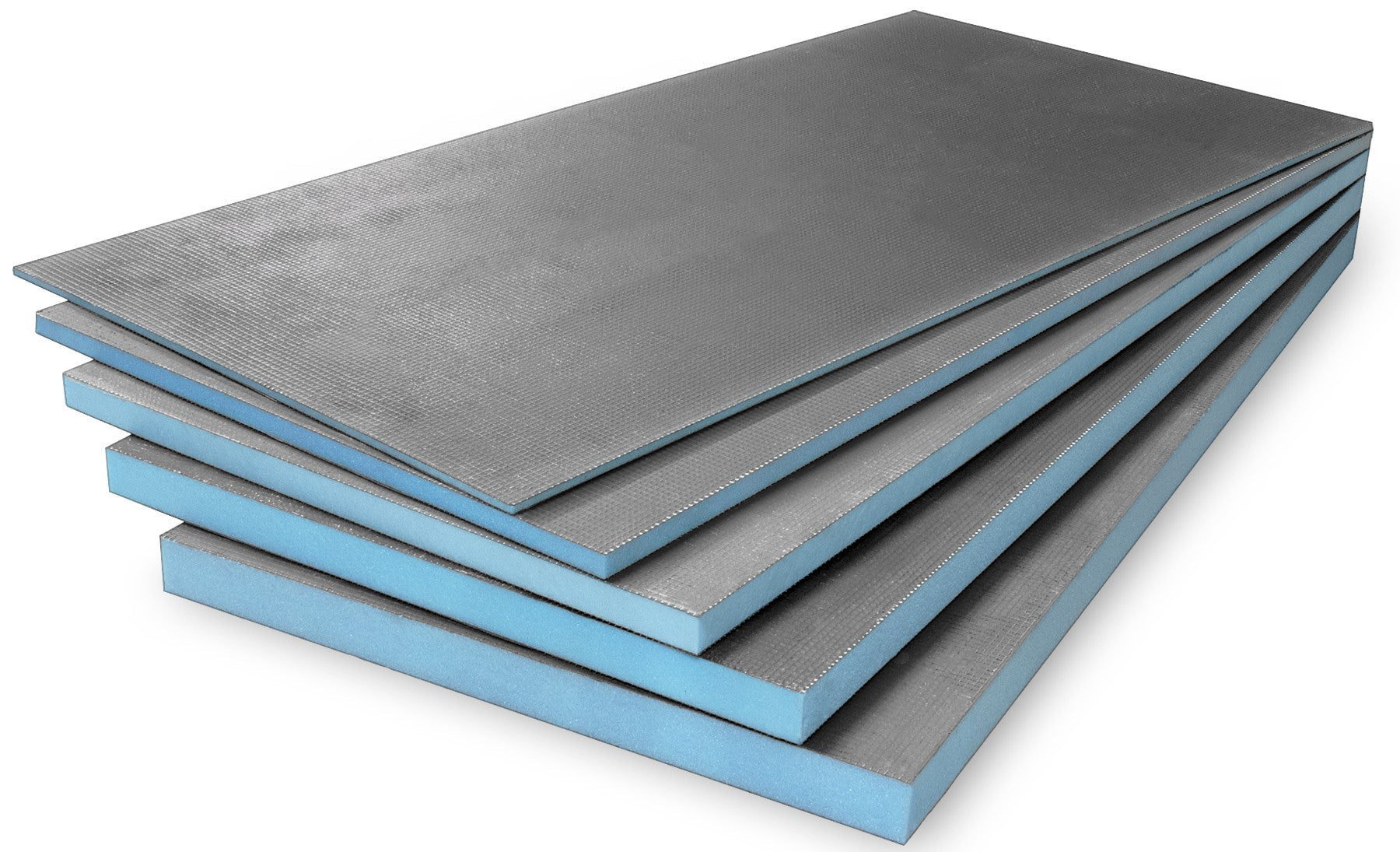

Thermopanel Tile Backer Boards combine waterproof performance, insulation properties, and high compressive strength in a lightweight and easy-to-install panel.

Each board is constructed using an extruded polystyrene (XPS) core reinforced with cement polymer coating and fibreglass mesh on both sides.

This construction delivers several important advantages.

1. Waterproof Core

One of the biggest benefits of Thermopanel boards is that they are fully waterproof at the core.

Unlike plasterboard or plywood, the board itself does not absorb water. This makes it ideal for:

  • Shower walls
  • Wet rooms
  • Bathroom floors
  • Steam rooms
  • High-humidity environments

When combined with waterproof sealing tape and tanking systems, Thermopanel boards help create a fully waterproof tiling substrate.

2. Excellent Thermal Insulation

Thermopanel boards are not just tile backer boards — they also provide thermal insulation.

The XPS foam core helps reduce heat loss through walls and floors, making them especially popular for:

  • Underfloor heating installations
  • Cold external walls
  • Conservatories
  • Bathroom refurbishments

By insulating beneath tiled surfaces, the boards can improve heating efficiency and help rooms warm up faster.

This is particularly beneficial when installing electric underfloor heating systems.

3. High Strength and Stability

Tiles require a rigid and stable surface.

Thermopanel boards are designed to minimise movement and flexing, helping prevent:

  • Cracked tiles
  • Failed grout joints
  • Tile lifting
  • Long-term structural issues

Their compressive strength makes them suitable for both wall and floor applications.

4. Lightweight and Easy to Cut

Compared to cement boards, Thermopanel boards are lightweight and far easier to handle.

Installers can cut boards using a utility knife without creating excessive dust, making installation cleaner and faster.

This helps reduce labour time on site and makes the boards easier to transport and fit.

5. Compatible With Underfloor Heating

Thermopanel Tile Backer Boards are commonly installed beneath electric underfloor heating systems.

The insulation properties help direct heat upward into the room rather than allowing it to escape into the subfloor.

This can:

  • Improve heating efficiency
  • Reduce heat-up times
  • Lower energy waste
  • Improve comfort underfoot

For tiled floors, this combination creates an efficient and professional flooring system.

Common Applications for Thermopanel Boards

Thermopanel Tile Backer Boards are extremely versatile and can be used across a wide range of residential and commercial tiling projects.

Bathroom Walls

Perfect for tiled bathroom walls where moisture resistance is essential.

Wet Rooms

Used as part of fully tanked wet room systems.

Shower Enclosures

Provides a waterproof and stable tiling substrate behind shower areas.

Tiled Floors

Helps strengthen flooring and improve insulation beneath tiles.

Underfloor Heating Systems

Ideal beneath electric underfloor heating mats or cables.

Kitchen Walls

Suitable for splashback areas and moisture-prone spaces.

Insulating Cold Walls

Adds insulation while creating a tile-ready surface.

Available Thicknesses and Their Uses

Thermopanel boards are available in a range of thicknesses depending on the application.

Thickness Common Use
4mm - 6mm Floor decoupling and minimal height build-up
10mm Standard wall applications
12mm Stronger wall and floor installations
20mm+ Insulation upgrades and levelling
30mm - 50mm High-insulation applications

Choosing the correct thickness depends on:

  • Subfloor condition
  • Insulation requirements
  • Floor height limitations
  • Structural requirements
  • Heating system installation

How to Install Thermopanel Tile Backer Boards

Installation is straightforward when following proper preparation methods.

Step 1: Prepare the Surface

Ensure the wall or floor is clean, dry, and structurally sound.

Step 2: Cut Boards to Size

Boards can be scored and snapped using a utility knife.

Step 3: Fix Boards Securely

Depending on the application, boards are fixed using:

  • Flexible tile adhesive
  • Mechanical fixings and washers
  • Appropriate screws

Step 4: Seal Joints

Use waterproof tape and tanking products on all joints and corners.

Step 5: Tile Directly Onto the Surface

Once fixed and sealed, tiles can be installed directly onto the board using a suitable flexible tile adhesive.

Thermopanel Boards vs Cement Boards

Many installers compare tile backer boards against traditional cement boards.

Here’s how Thermopanel compares.

Feature Thermopanel Boards Traditional Cement Boards
Waterproof Core Yes No
Thermal Insulation Excellent Minimal
Weight Lightweight Heavy
Ease of Cutting Utility knife Power tools often required
Dust During Installation Minimal High
Underfloor Heating Compatibility Excellent Good
Handling Easy More difficult

For many installers, the lighter weight and insulation benefits make Thermopanel boards a more practical and efficient option.

Why Professional Installers Choose Thermopanel

Professional tilers and bathroom installers often prioritise materials that save time while delivering reliable long-term performance.

Thermopanel boards are popular because they:

  • Speed up installation
  • Reduce handling effort
  • Improve waterproofing reliability
  • Enhance insulation performance
  • Work well with modern heating systems
  • Provide a professional tiling substrate

For bathroom renovations and wet room projects, these benefits can significantly improve the overall quality of the installation.

Ideal for DIY Bathroom Renovations

Thermopanel boards are also suitable for DIY users thanks to their lightweight construction and easy cutting process.

Homeowners can:

  • Install boards without specialist cutting tools
  • Improve insulation in older bathrooms
  • Create a waterproof substrate for tiling
  • Upgrade floors for underfloor heating

The simplified installation process makes them accessible even for first-time renovators.

Long-Term Benefits of Using Thermopanel Tile Backer Boards

Investing in quality tile backer boards helps protect tiled installations for years to come.

Long-term advantages include:

  • Reduced risk of tile failure
  • Better moisture protection
  • Improved room insulation
  • Enhanced heating efficiency
  • Lower maintenance issues
  • Stronger tiled surfaces

Choosing the correct substrate is one of the most important parts of any successful tiling project.

Final Thoughts

Thermopanel Tile Backer Boards provide a reliable, waterproof, and energy-efficient solution for modern tiling and bathroom installations.

Whether you’re installing a wet room, upgrading a bathroom floor, fitting underfloor heating, or preparing walls for tiling, using a purpose-built tile backer board helps ensure long-lasting performance.

With waterproof construction, excellent insulation properties, high strength, and easy installation, Thermopanel boards are an ideal choice for both professional installers and DIY users.

If you’re planning a tiling project and want a durable foundation that supports both performance and efficiency, Thermopanel Tile Backer Boards are a smart investment.
