Step 1

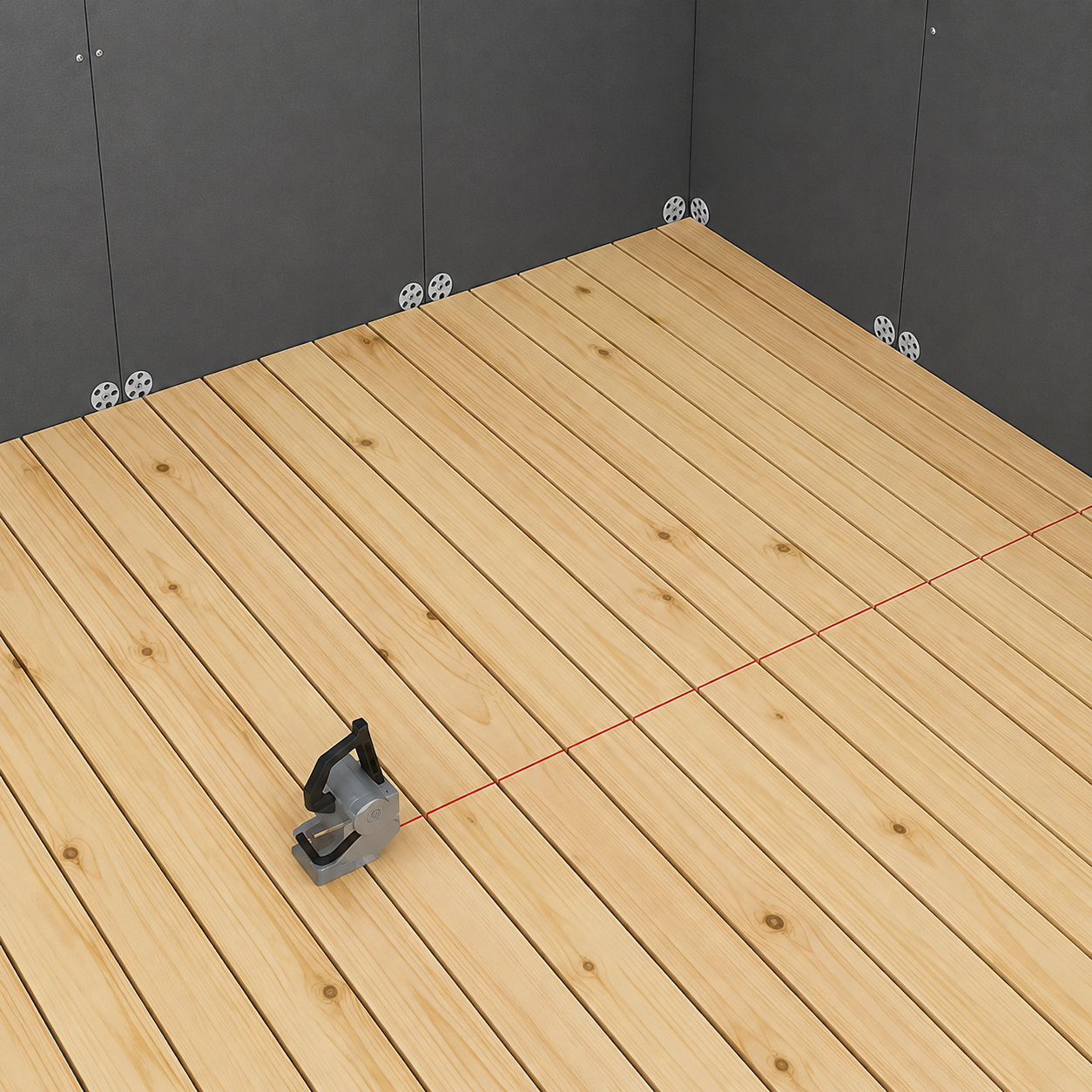

Position the shower tray in the desired location and mark around it to identify which sections of the floorboards need to be removed so the tray can be recessed properly.

Step 2

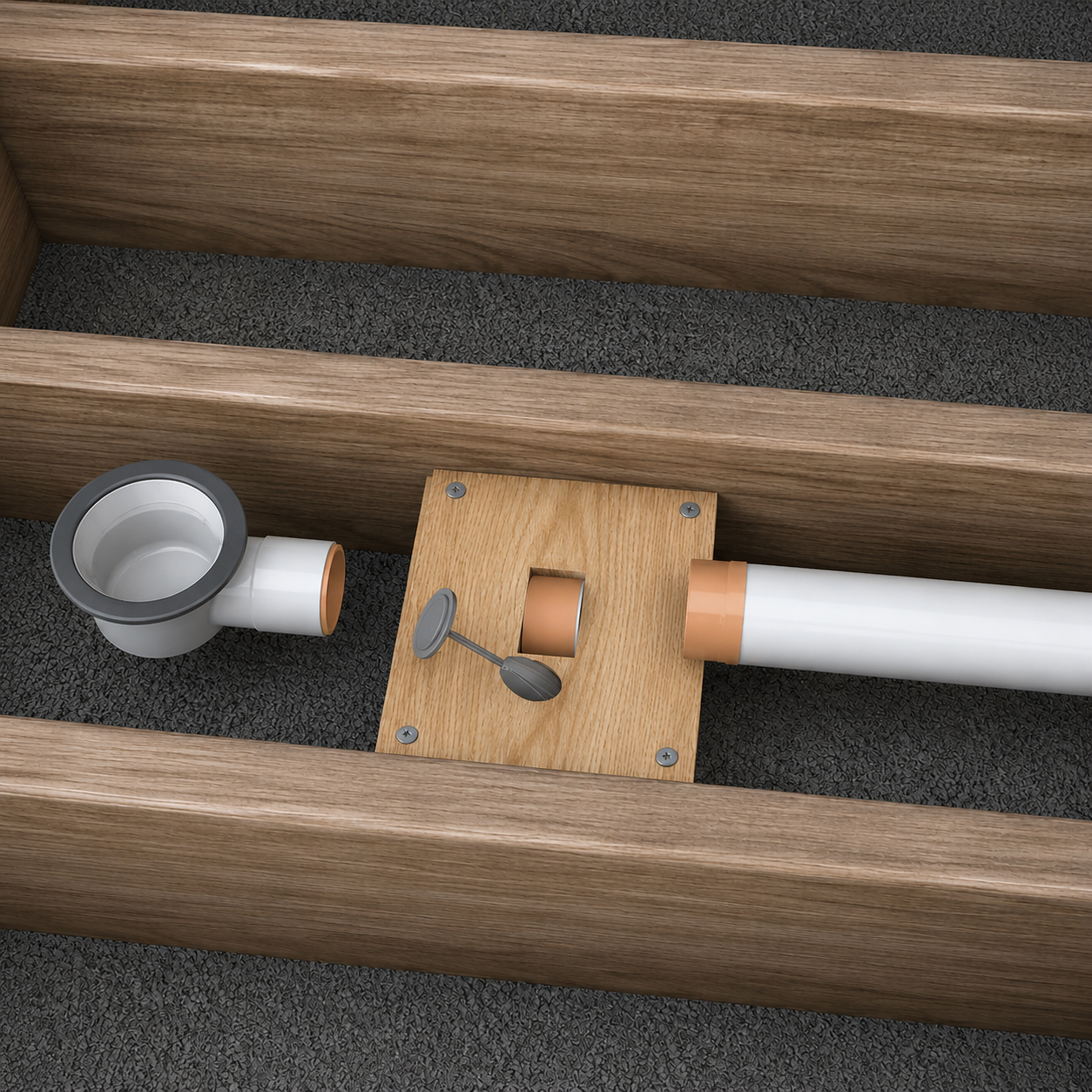

Once the floorboards have been removed, measure and mark the position for the drain and waste pipe.

Cut a piece of plywood to support the drain body, ensuring it sits 10mm higher than the waste pipe. Connect the drain body to the waste pipe using solvent weld in the usual way. Always check for leaks before the final installation of the shower tray.

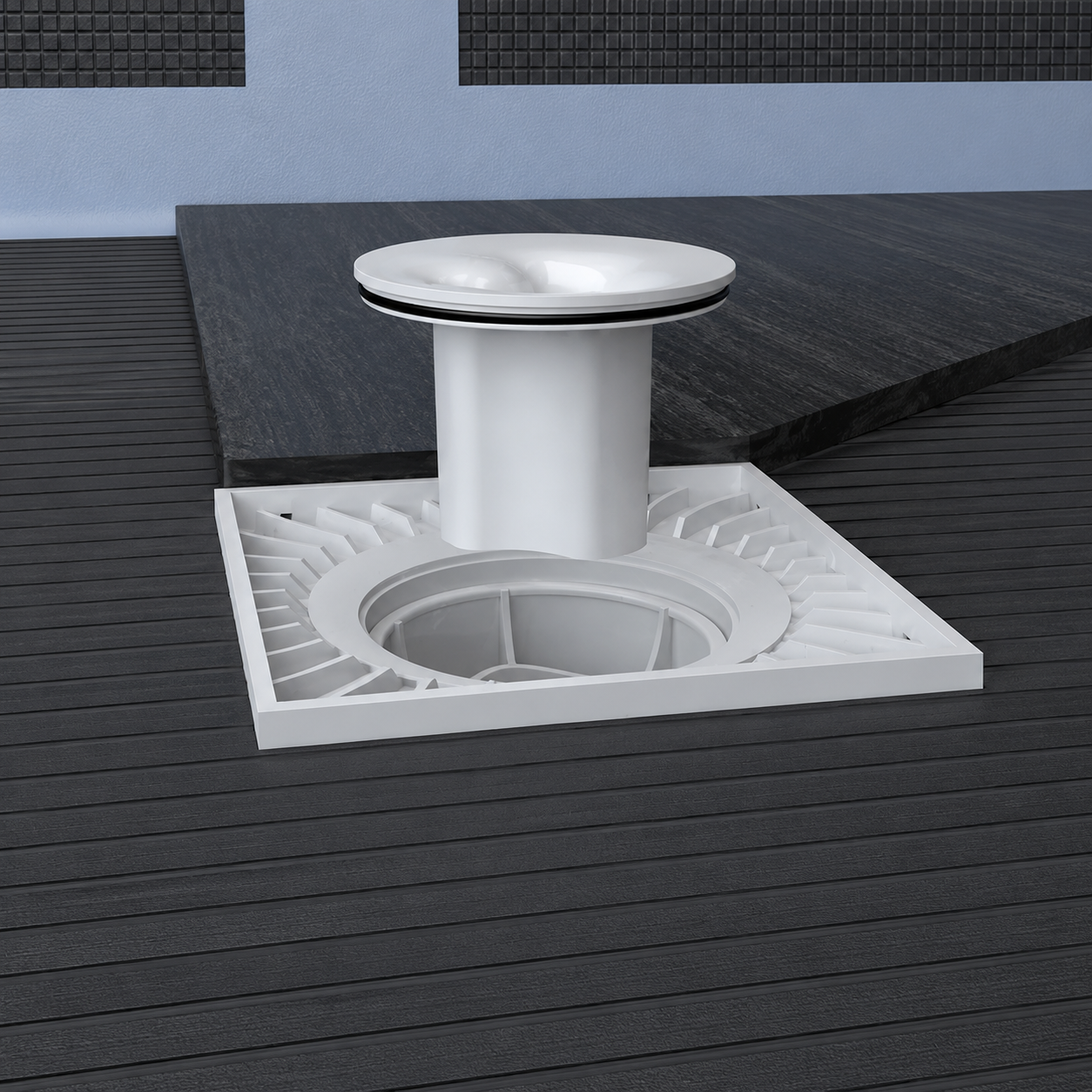

Please note: the drain body must be separated into two parts — the upper section fits to the underside of the former, while the main body is installed into the floor.

Step 3

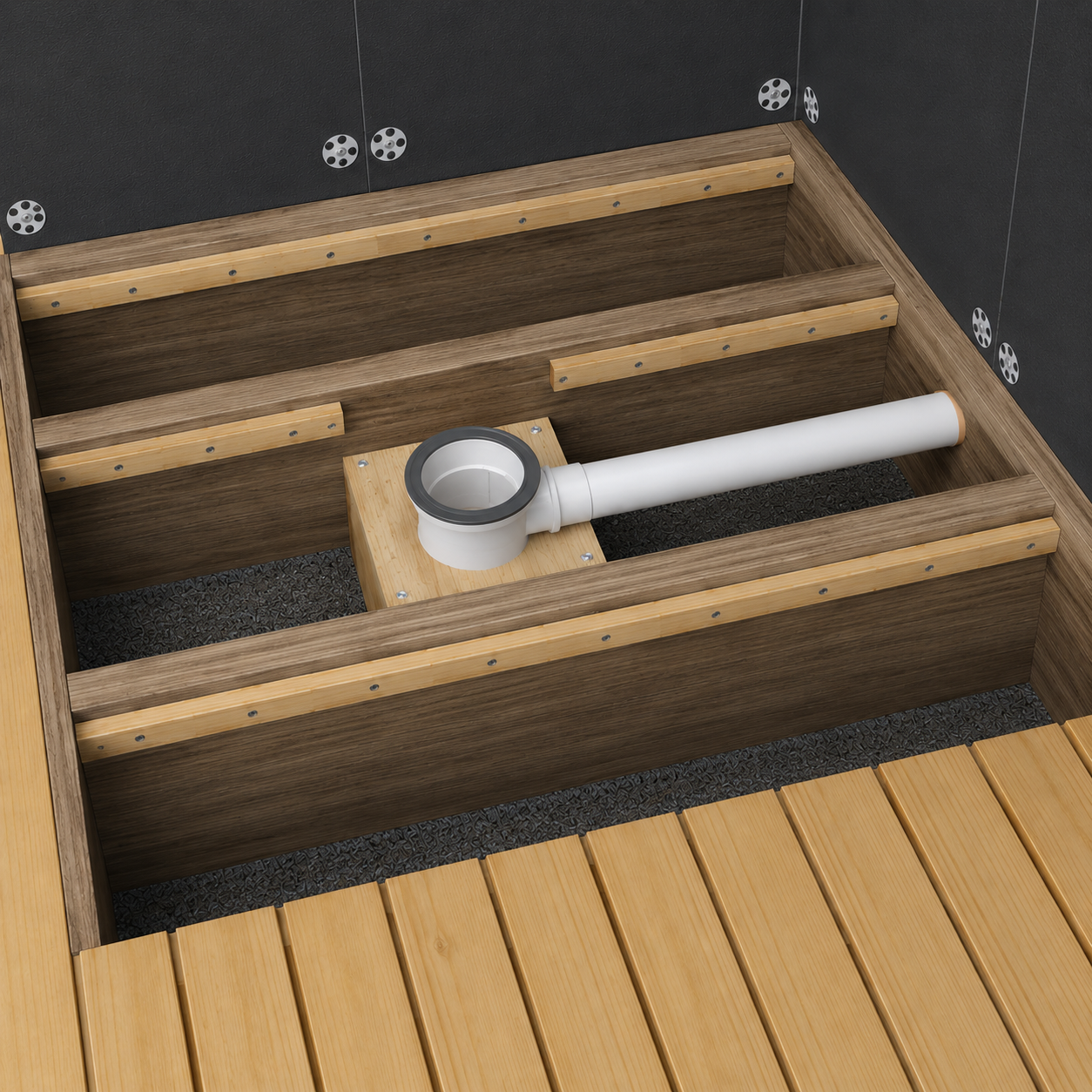

Fix battens below the top of the joists.

Step 4

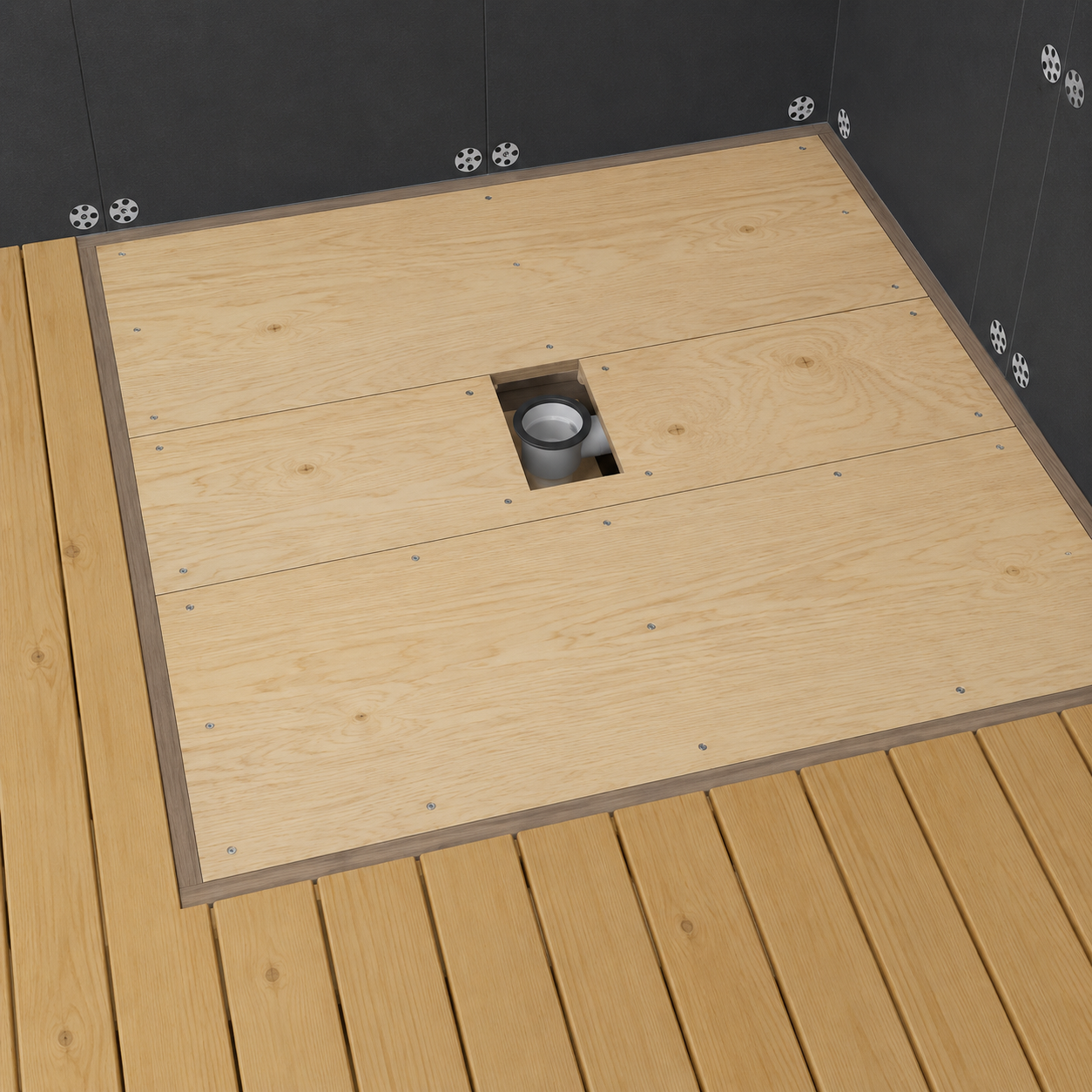

Once you are satisfied with the drainage, place plywood around the drain and fix in position.

Step 5

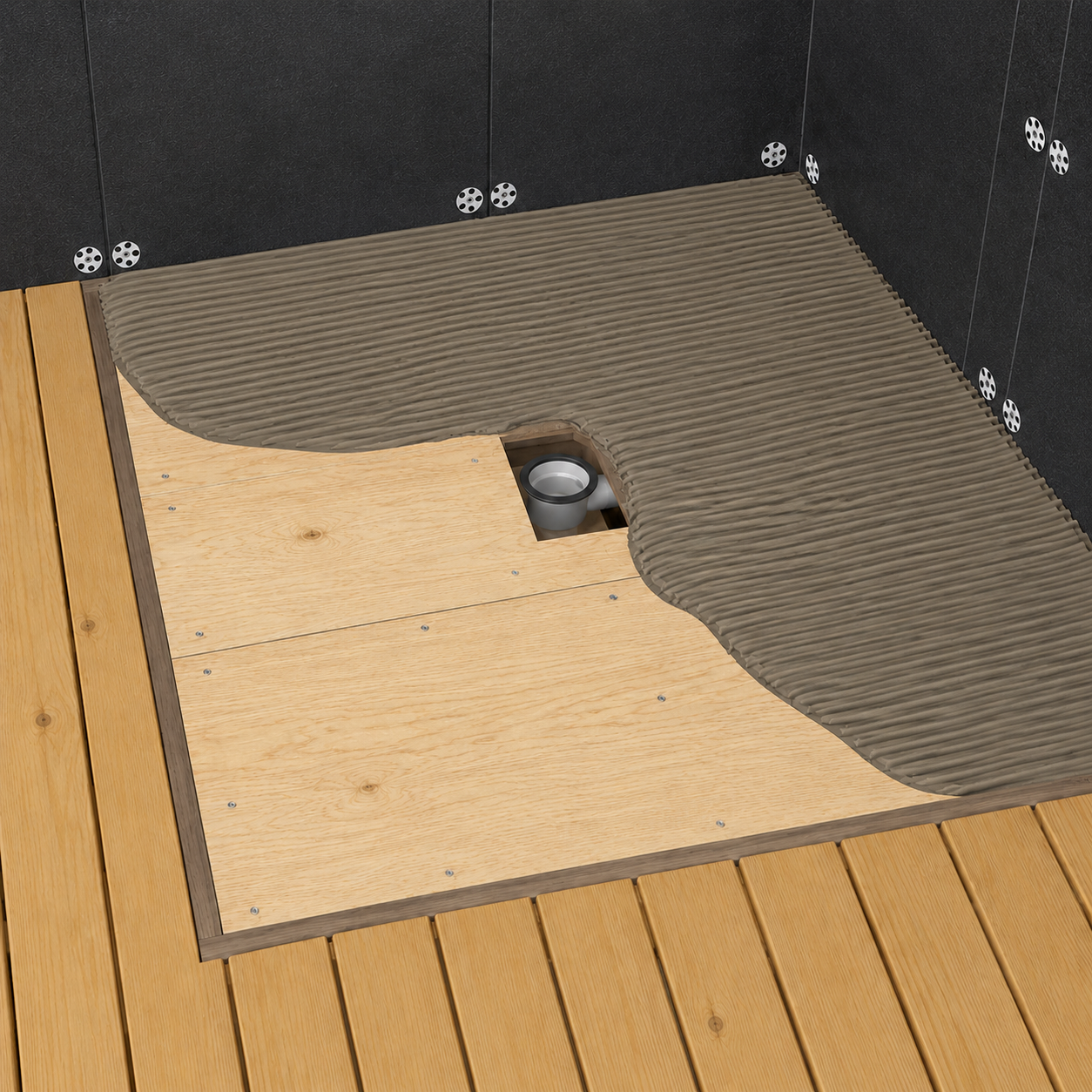

Spread the adhesive evenly over the area where the shower tray is to be installed, being careful to clean away any adhesive on the rim of the trap.

Shop Tile Adhesives Here

Step 6

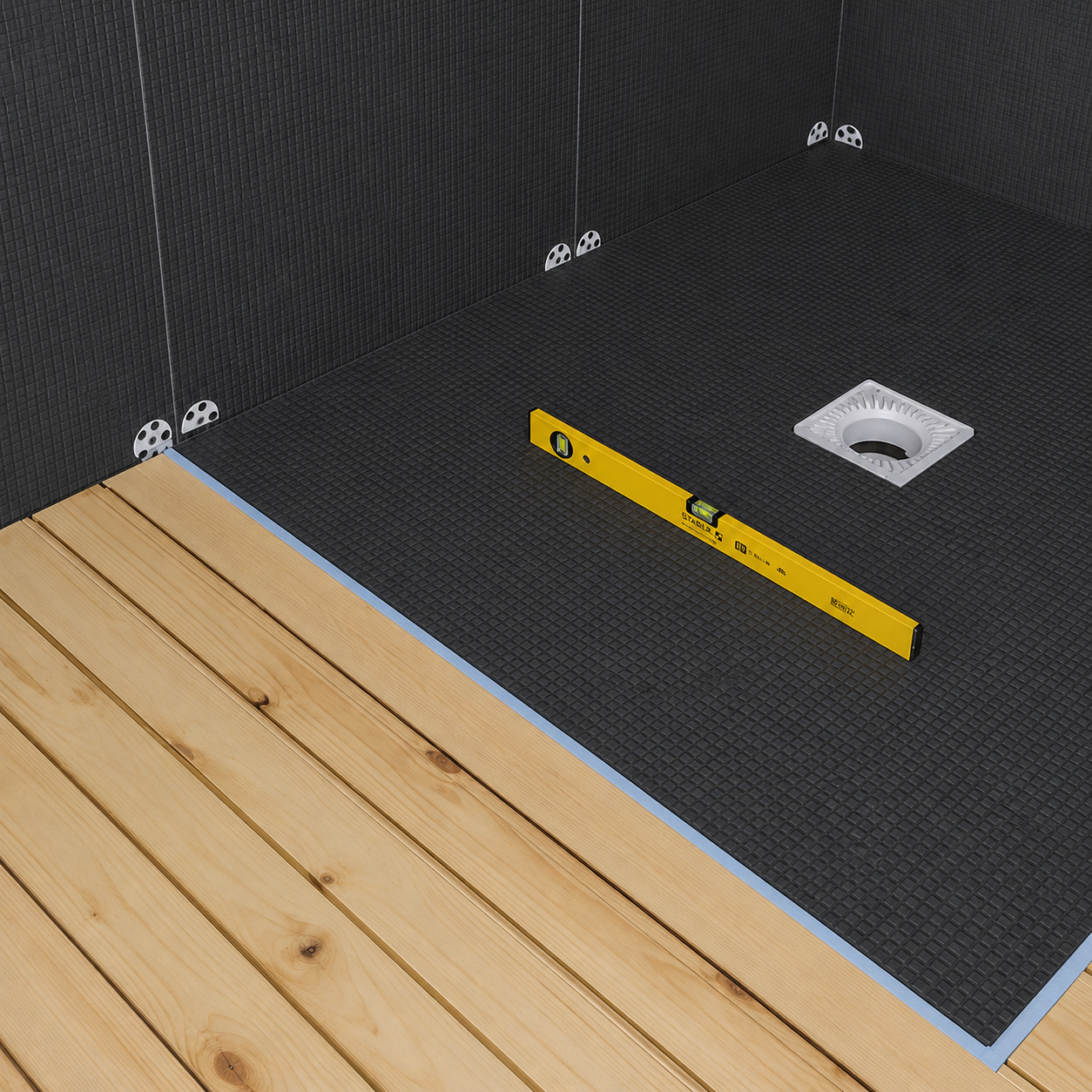

Lay down the shower tray onto the adhesive. Ensure that the surface is smooth & level.

Step 7

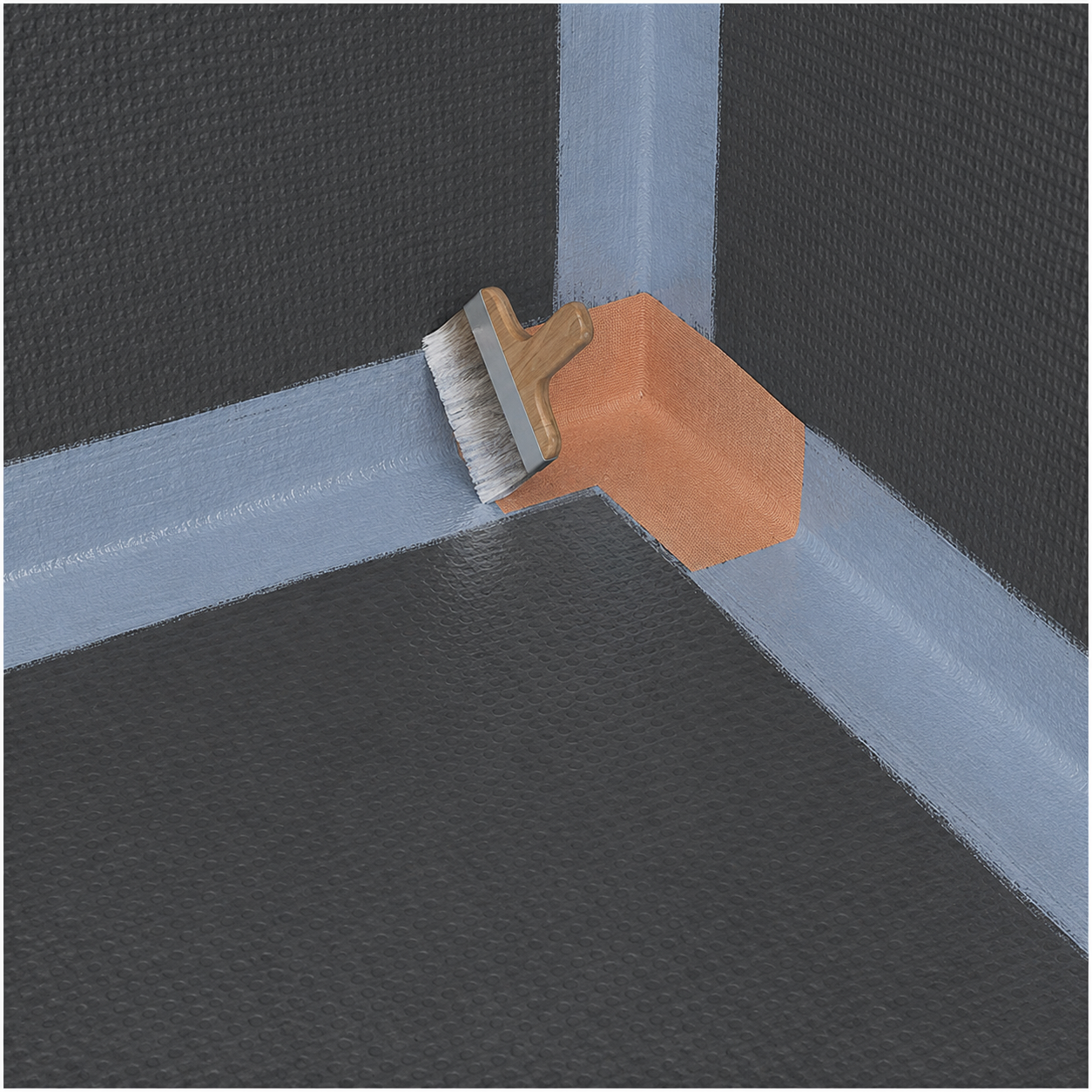

Seal all wall and floor joints using a waterproof membrane and paste. All corners within the shower area should also be sealed using internal corner membrane pieces and waterproofing paste to ensure a fully watertight installation.

Shop Waterproofing Tapes

Step 8

Assemble other drain components.

Step 9

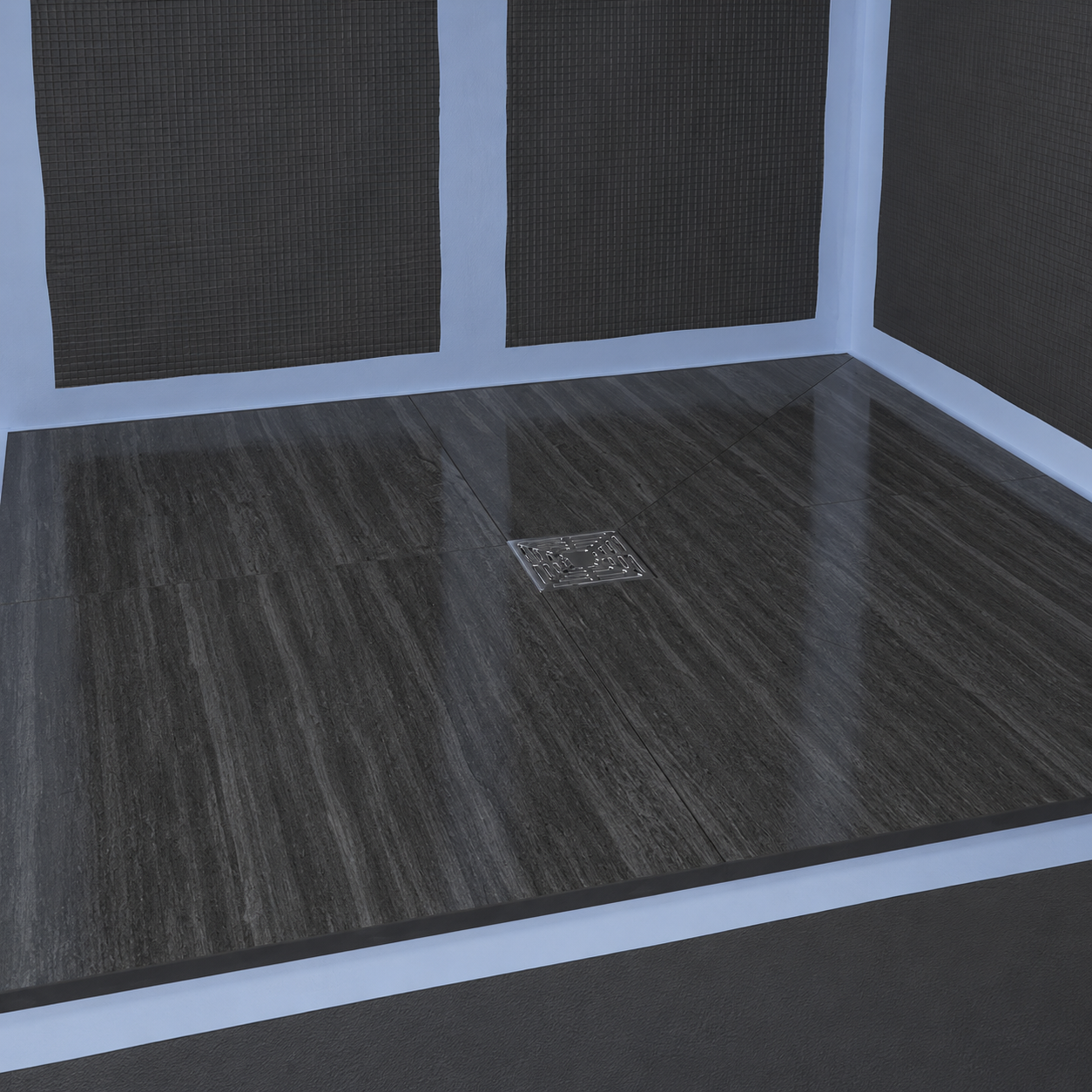

The shower base is now finished and can be tiled.

Installation Diagrams

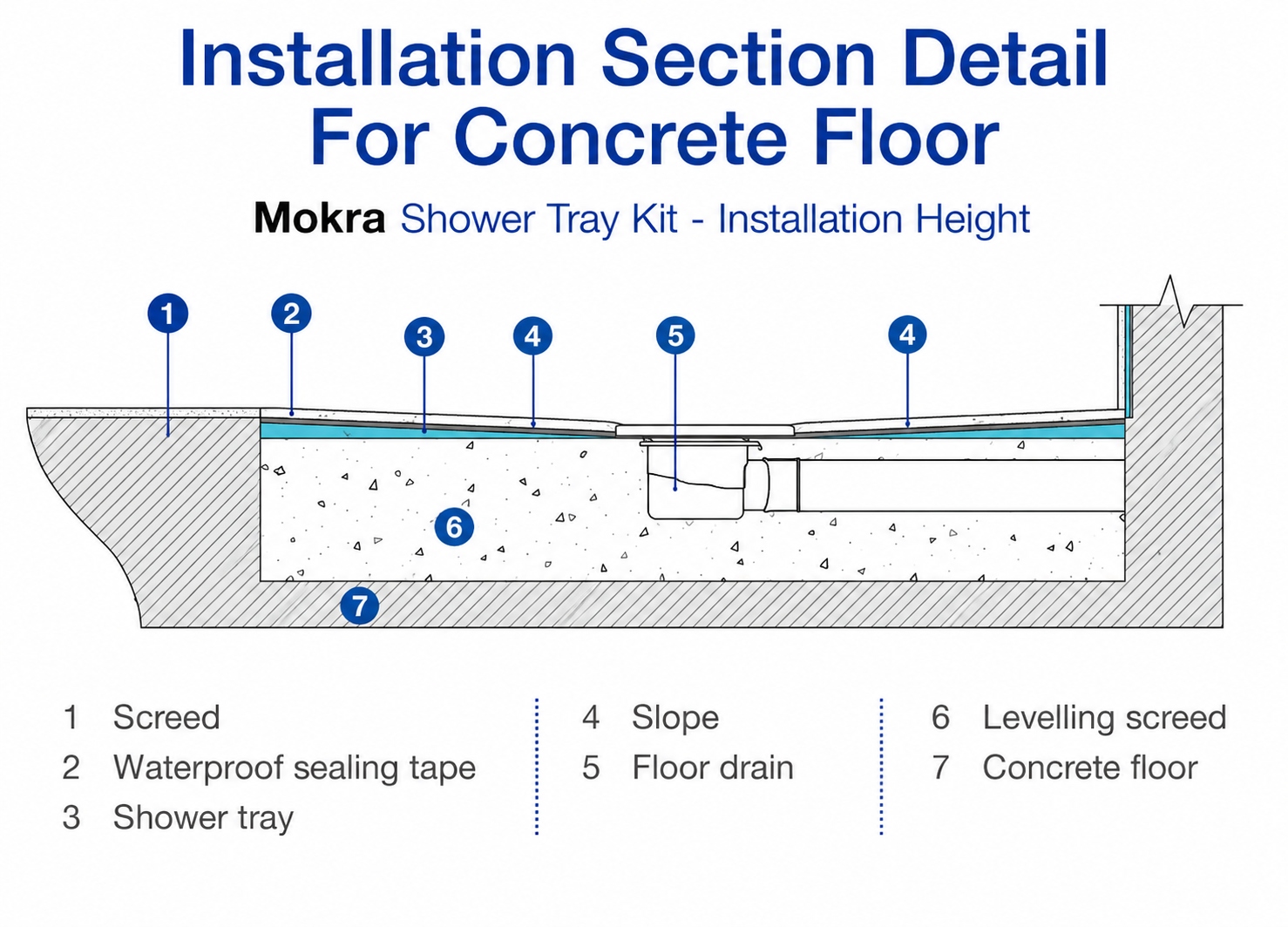

  • Installation Section Detail for Concrete Floors

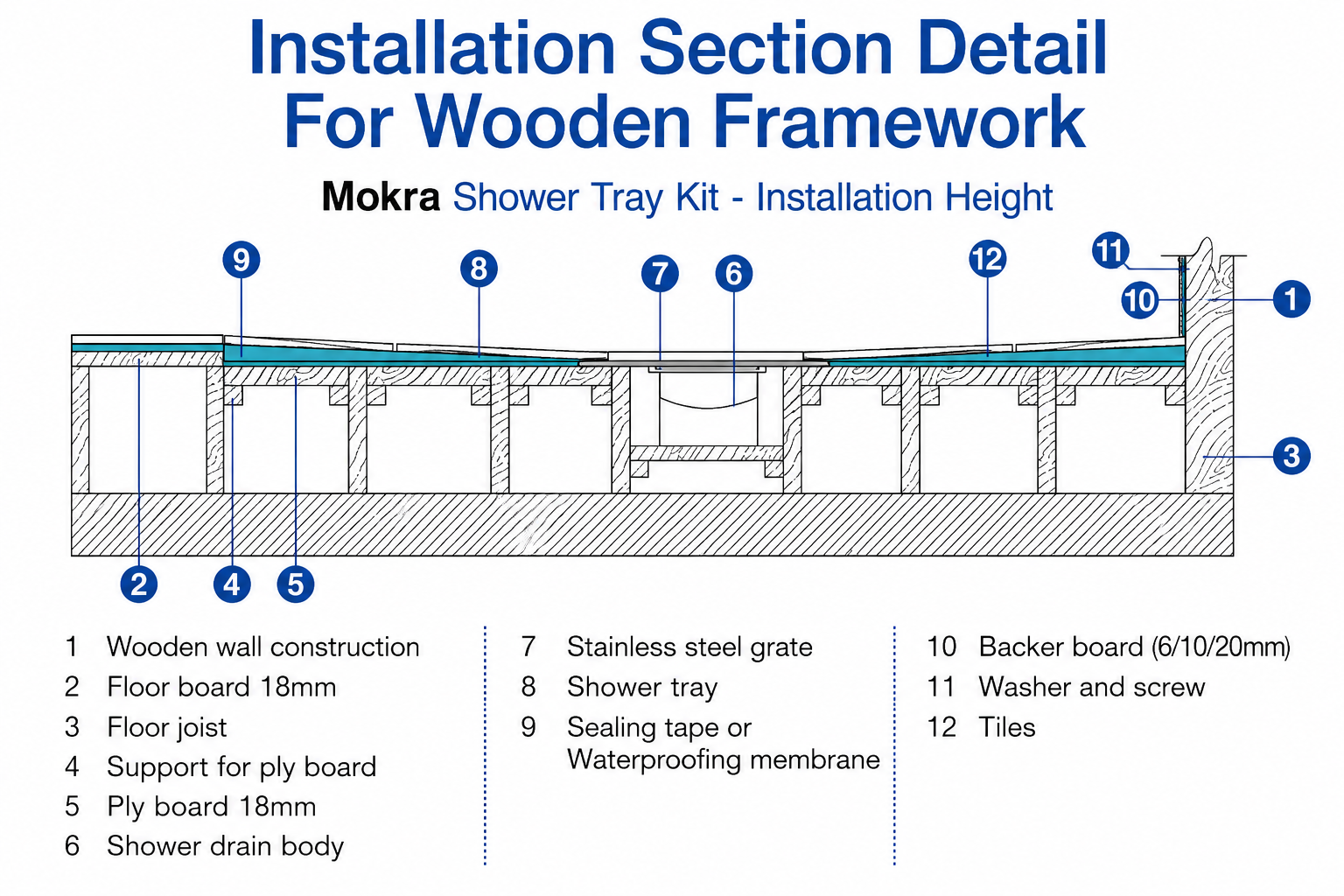

  • Installation Section Detail for Wooden Floors
