Product Description

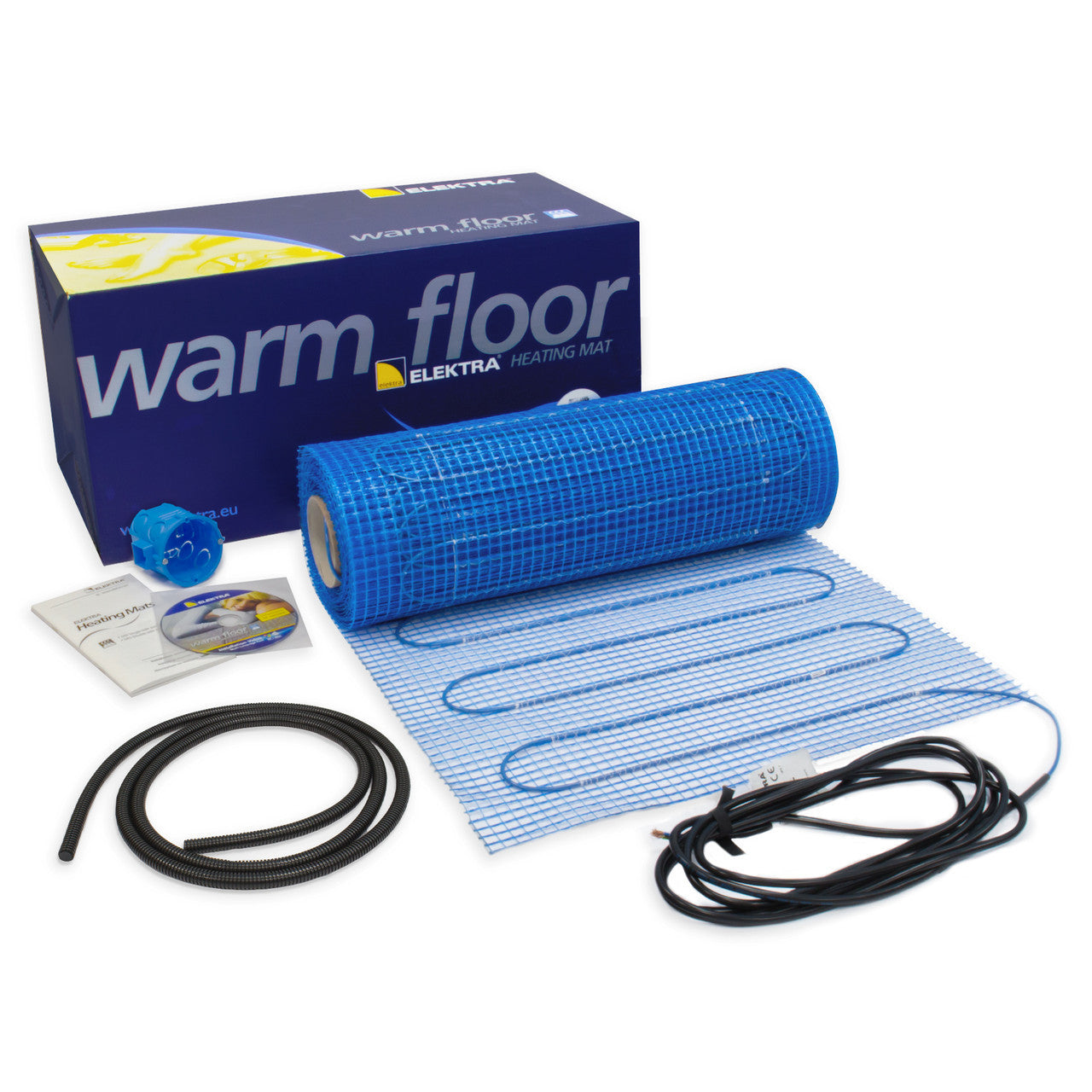

Elektra MD100 Underfloor Heating Mat

The Elektra MD100 Underfloor Heating Mat is designed as a secondary heating solution, delivering a comfortable warm floor effect. It is ideal for use in bathrooms and en-suites, helping to take the chill off tiled floors.

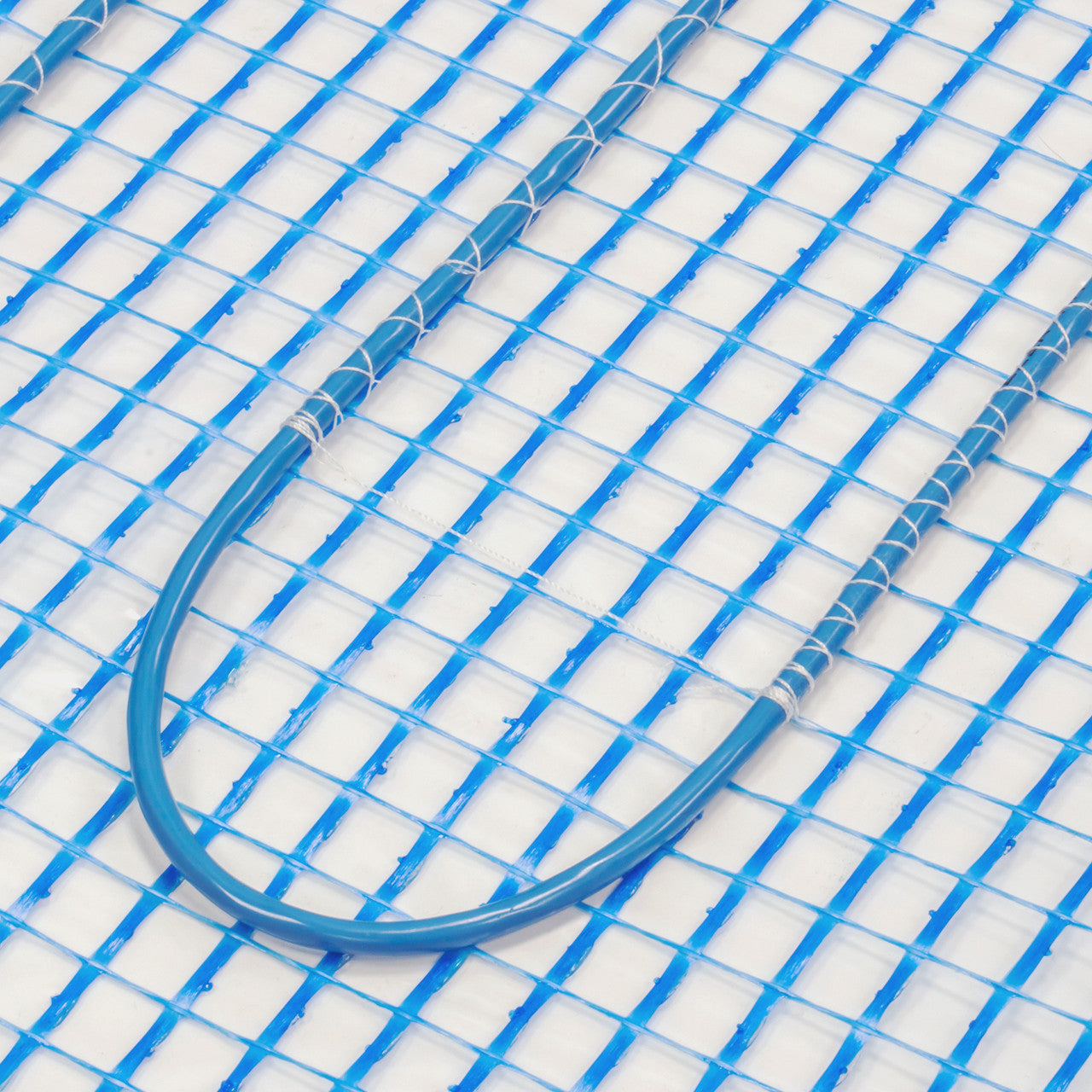

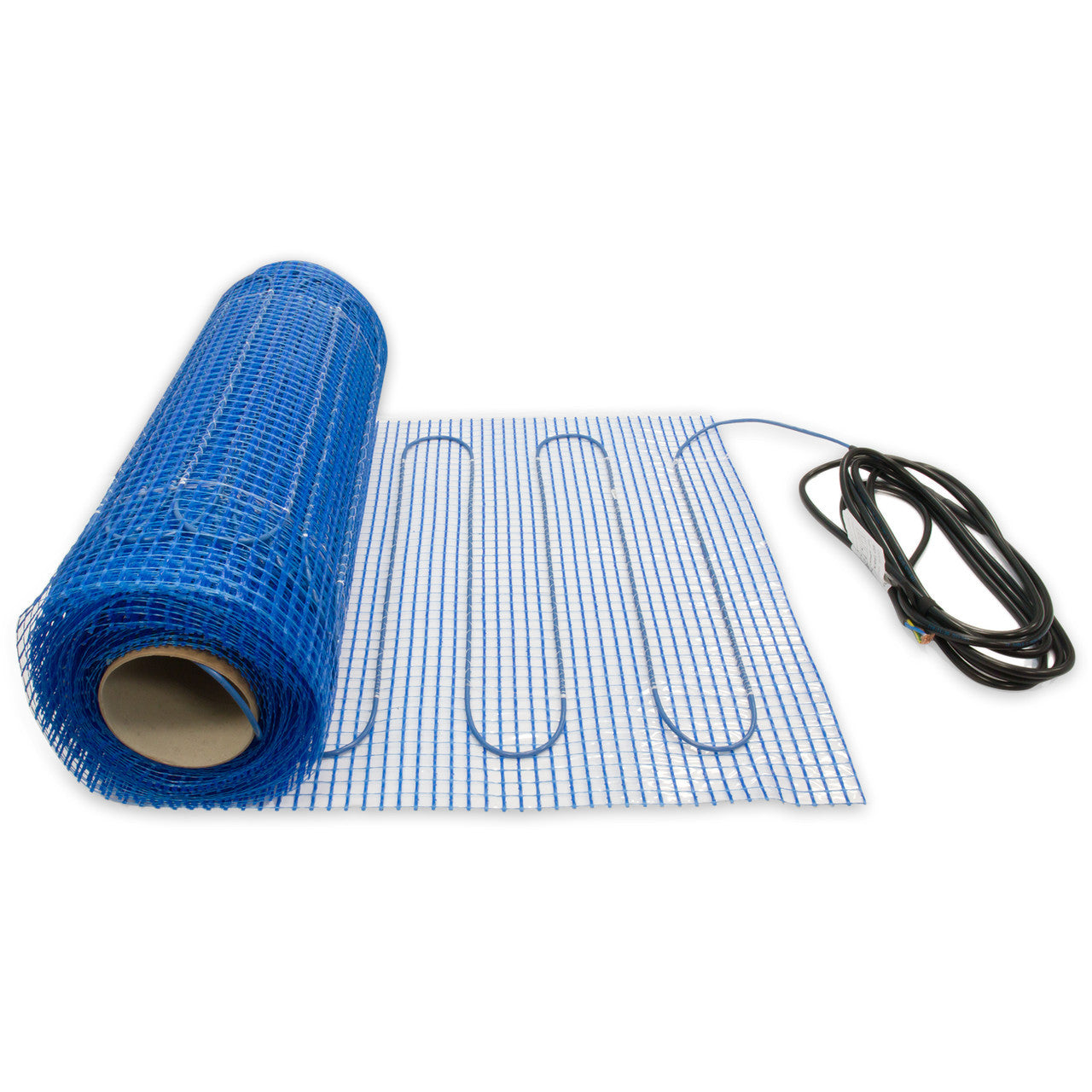

The system features a thin heating cable stitched onto a durable fibreglass mesh for easy installation. Each mat is 500mm wide and includes a 4m cold tail power lead, making it suitable for a wide range of indoor applications.


Installation Guidance

For optimal performance, install the mat beneath a flexible self-levelling compound or flexible tile adhesive, with a recommended coverage depth of 6–8mm.

*Please note: Mats covering areas greater than 10m² will be supplied as two separate heating mats.


Quality & Certification

Manufactured in Europe using high-quality raw materials, the Elektra MD100 range complies with ISO 9001 standards and meets IEC EN 60335-2-96 requirements.

The product holds multiple international approvals, including the German VDE certification, recognised as one of the most rigorous safety standards in Europe.

CE certified and supported by a lifetime guarantee, with full UK-based technical support available from experienced and qualified technicians.

Specifications

  • Mat Thickness: 3.9mm
  • Minimum Installation Temperature: -5°C
  • Maximum Working Temperature: +110°C
  • Cold Tail: 1 x 4m length, 3-core
  • Insulation: FEP (Teflon) + XLPE
  • Outer Sheath: XLPE
  • Output Power Tolerance: +5% / -10%
  • Minimum Bending Radius: 5D
  • IP Rating: IPX7
