Product Description

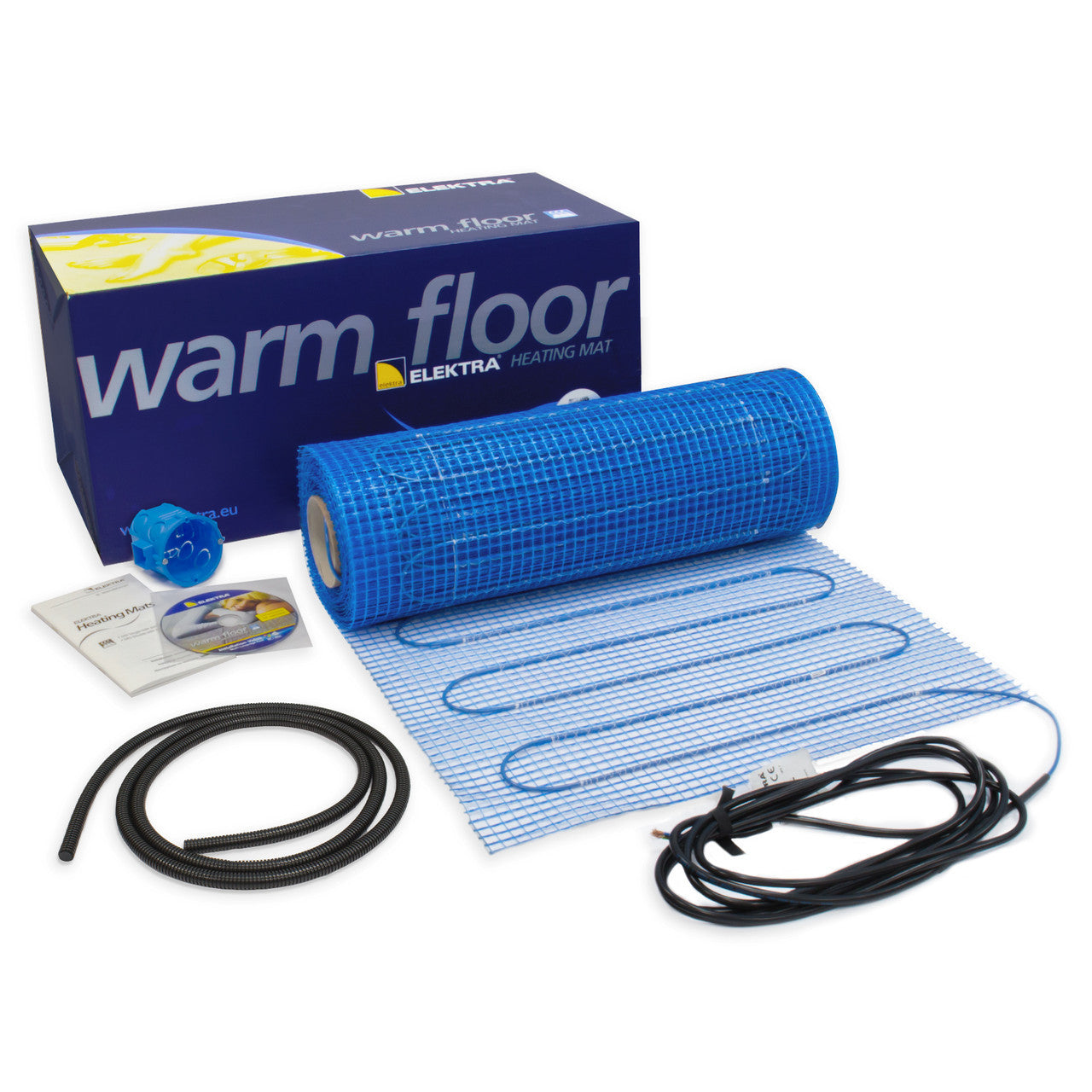

Elektra MD200 Underfloor Heating Mat

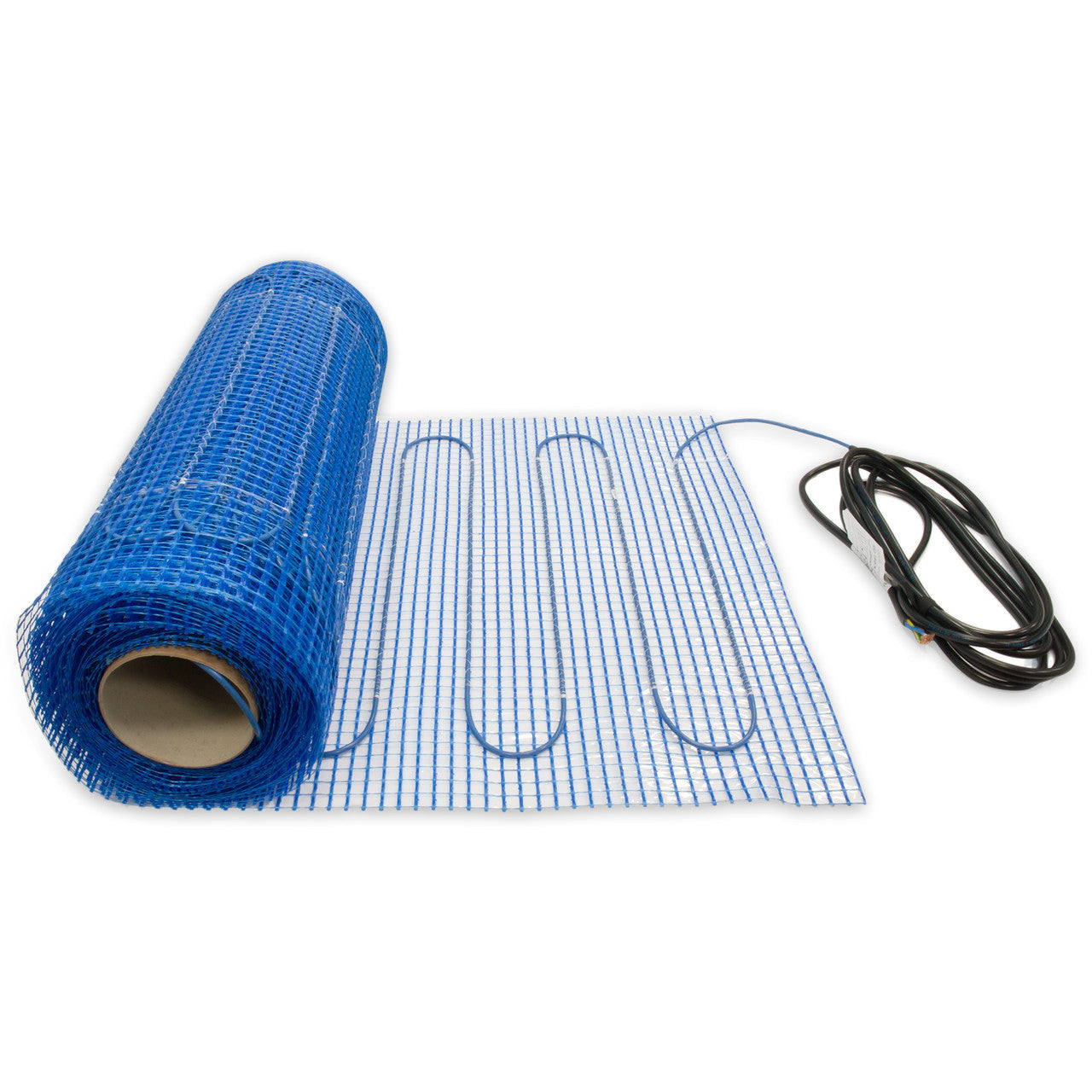

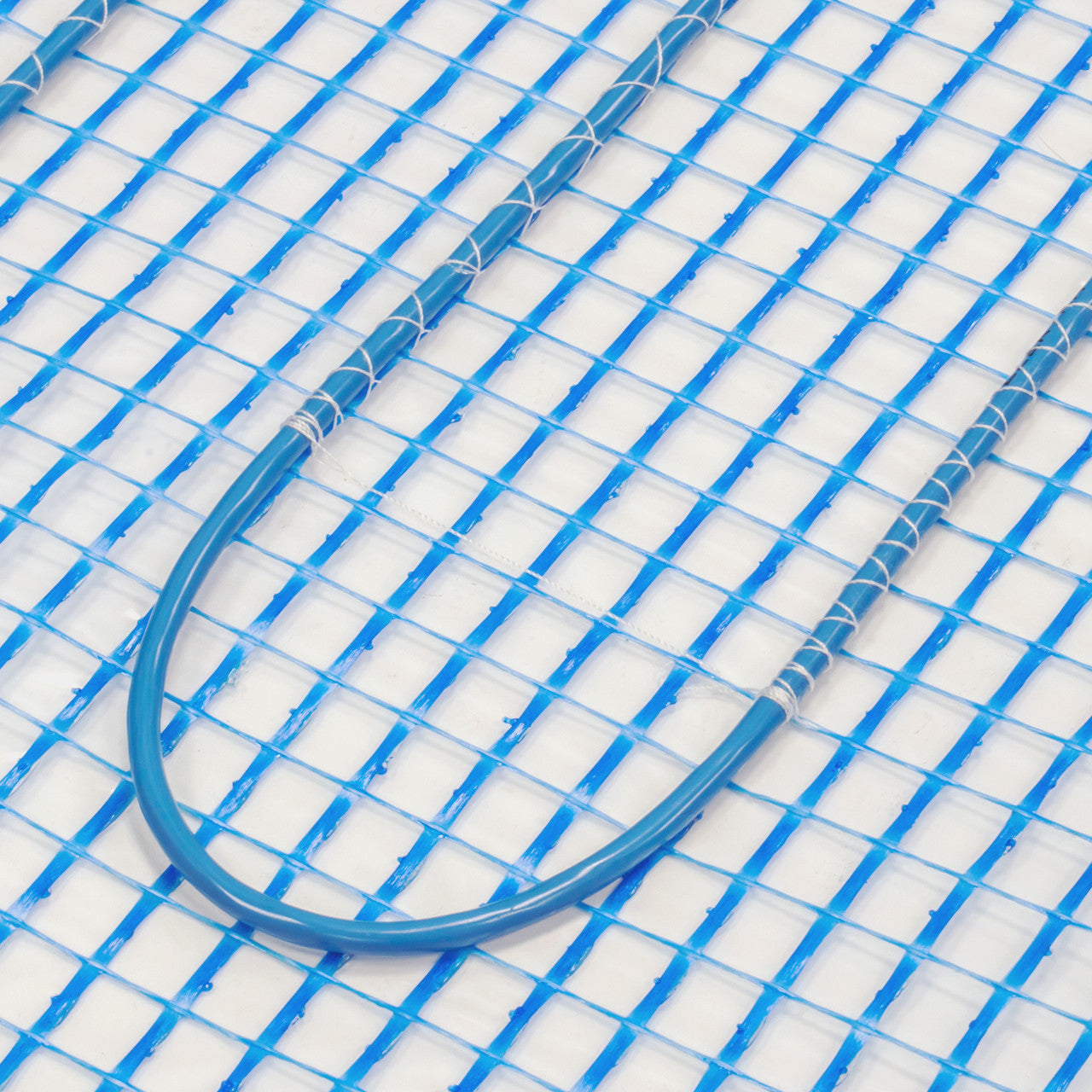

The Elektra MD200 Underfloor Heating Mat is designed to provide a primary heating solution in high heat loss areas such as conservatories. Each mat features a thin heating cable pre-attached to a durable fibreglass mesh for quick and consistent installation.

With a 500mm width and a 4m cold tail power lead, this system is ideal for indoor applications where efficient, even heat distribution is essential.


Installation Guidance

For best results, the mat should be installed beneath a flexible self-levelling compound or flexible tile adhesive, with a recommended coverage depth of 6–8mm.

*Please note: Mats covering areas larger than 10m² will be supplied as two separate heating mats.


Quality & Certification

Manufactured in Europe using premium raw materials, the Elektra MD200 range complies with ISO 9001 standards and meets IEC EN 60335-2-96 requirements.

The system has achieved multiple international approvals, including the German VDE certification, widely regarded as one of the highest safety standards in Europe.

CE certified and backed by a lifetime guarantee, with full UK-based technical support available from experienced and qualified technicians.


Specifications

  • Mat Thickness: 3.9mm
  • Minimum Installation Temperature: -5°C
  • Maximum Working Temperature: +110°C
  • Cold Tail: 1 x 4m length, 3-core
  • Insulation: FEP (Teflon) + XLPE
  • Outer Sheath: XLPE
  • Output Power Tolerance: +5% / -10%
  • Minimum Bending Radius: 5D
  • IP Rating: IPX7
