Elektra Undertile Heating Cable with HeatBase Decoupling Membrane

Elektra Undertile Heating Cable with HeatBase Decoupling Membrane

SKU:HBDM10/90

Regular price £54.99 GBP
Regular price Sale price £54.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 4 left

Quantity
View full details
Please note: this item is ordered direct from our suppliers. Please allow extra time for delivery.
Next Day Delivery Available*
Order Before 1pm
*Excludes weekends and bank holidays

Product Description

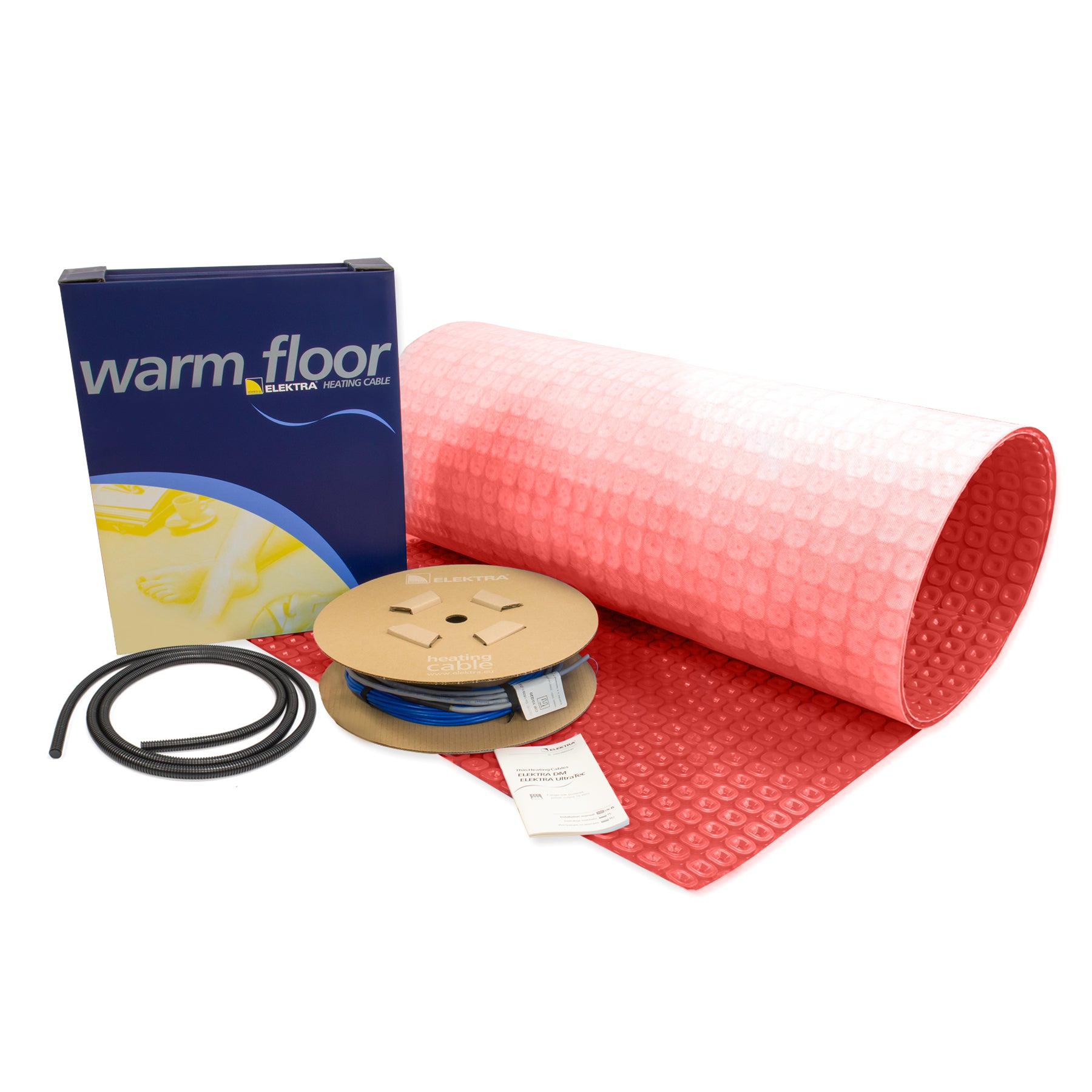

Heat Base Waterproofing Membrane with Elektra DM10 Electric Underfloor Heating Cable. Each kit includes enough decoupling membrane to cover the area required.

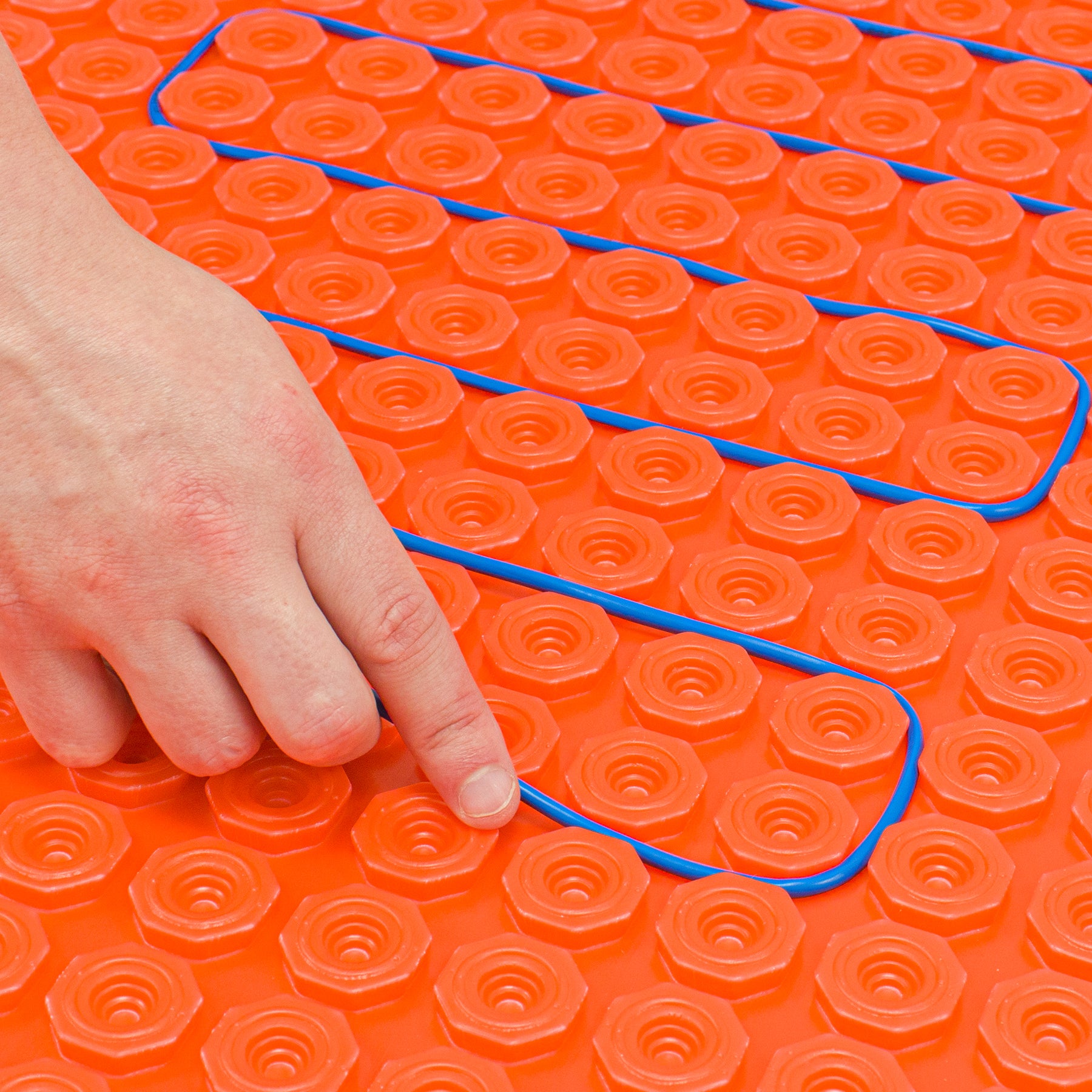

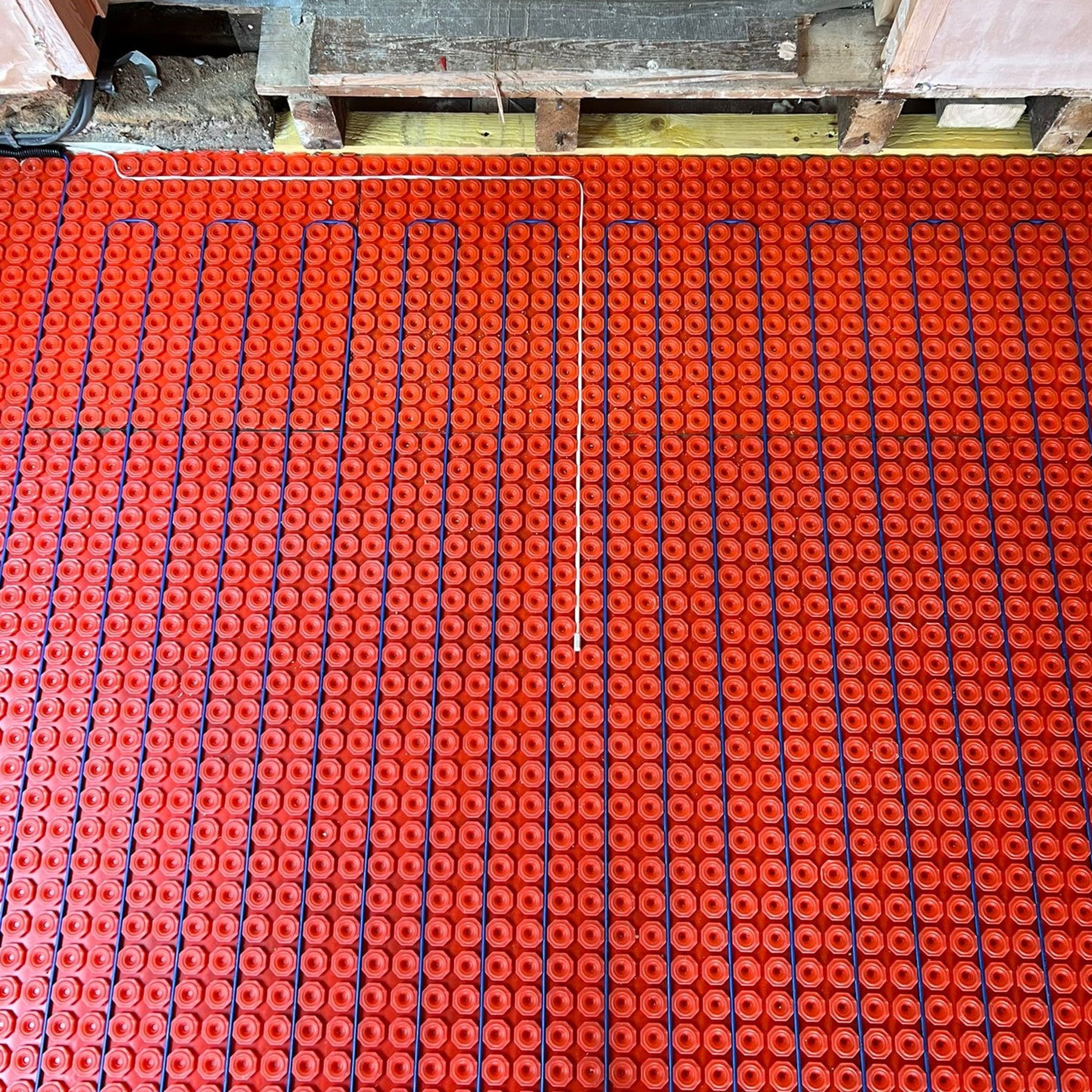

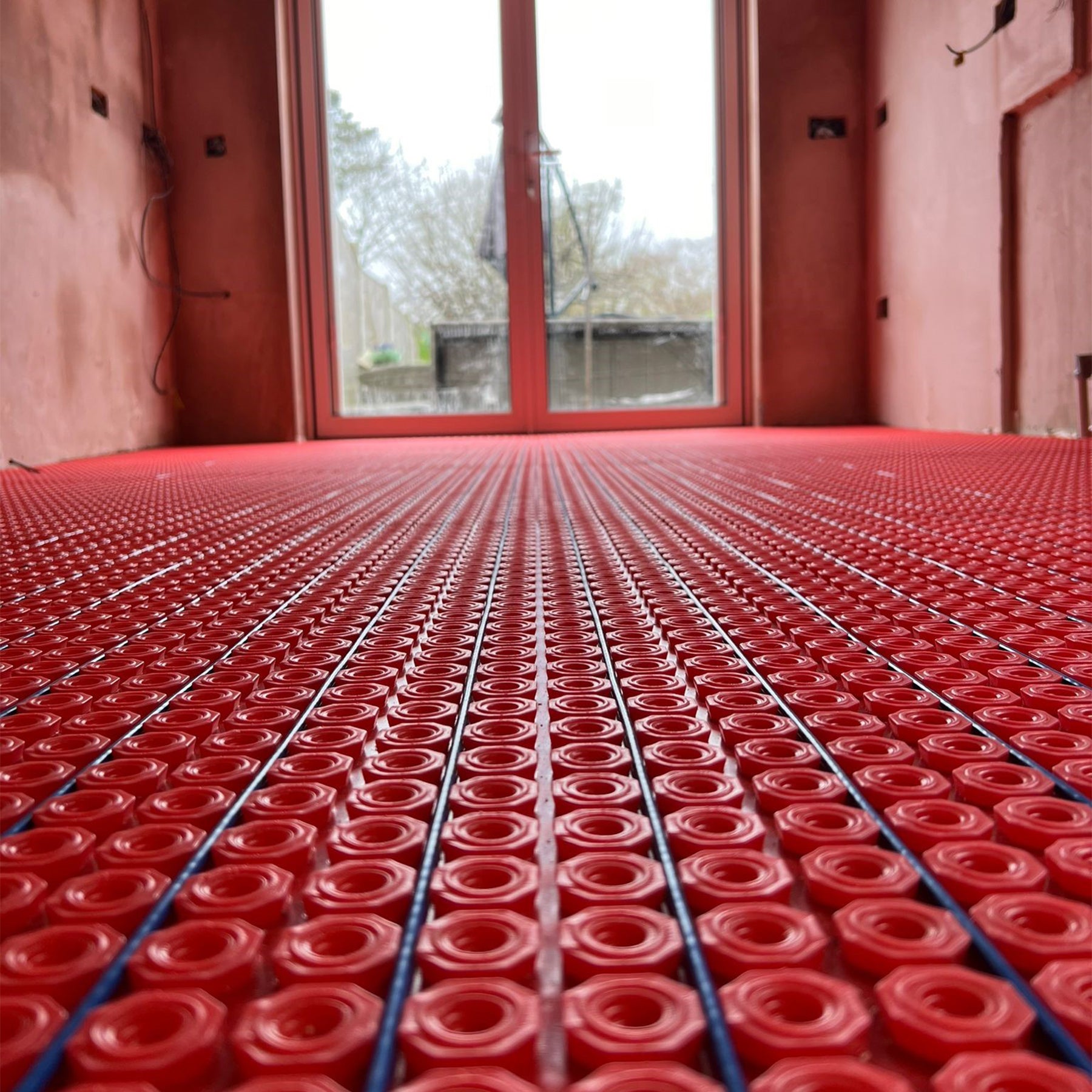

Heat Base is a Polypropylene uncoupling crack isolation waterproofing membrane made for use with Electric Underfloor Heating. Heat Base uncoupling membrane has rounded square-shaped reliefs which allow the Elektra DM10 Heating Cable to easily fit into the pre-grooved channels.

Heat Base is very flexible and easy to use and cut into shape for the requirements of any shaped room, allowing you to get the maximum coverage for the Elektra DM10 Undertile Heating Cable.

Heat Base Membrane's unique design allows for:

  • Flexible heating zone selection
  • Cost and time saving installation
  • Waterproofing
  • Uncoupling crack isolation
  • Vapor management
  • Support load distribution
  • Small height increase 5.5mm (1/4 inch)

Specifications

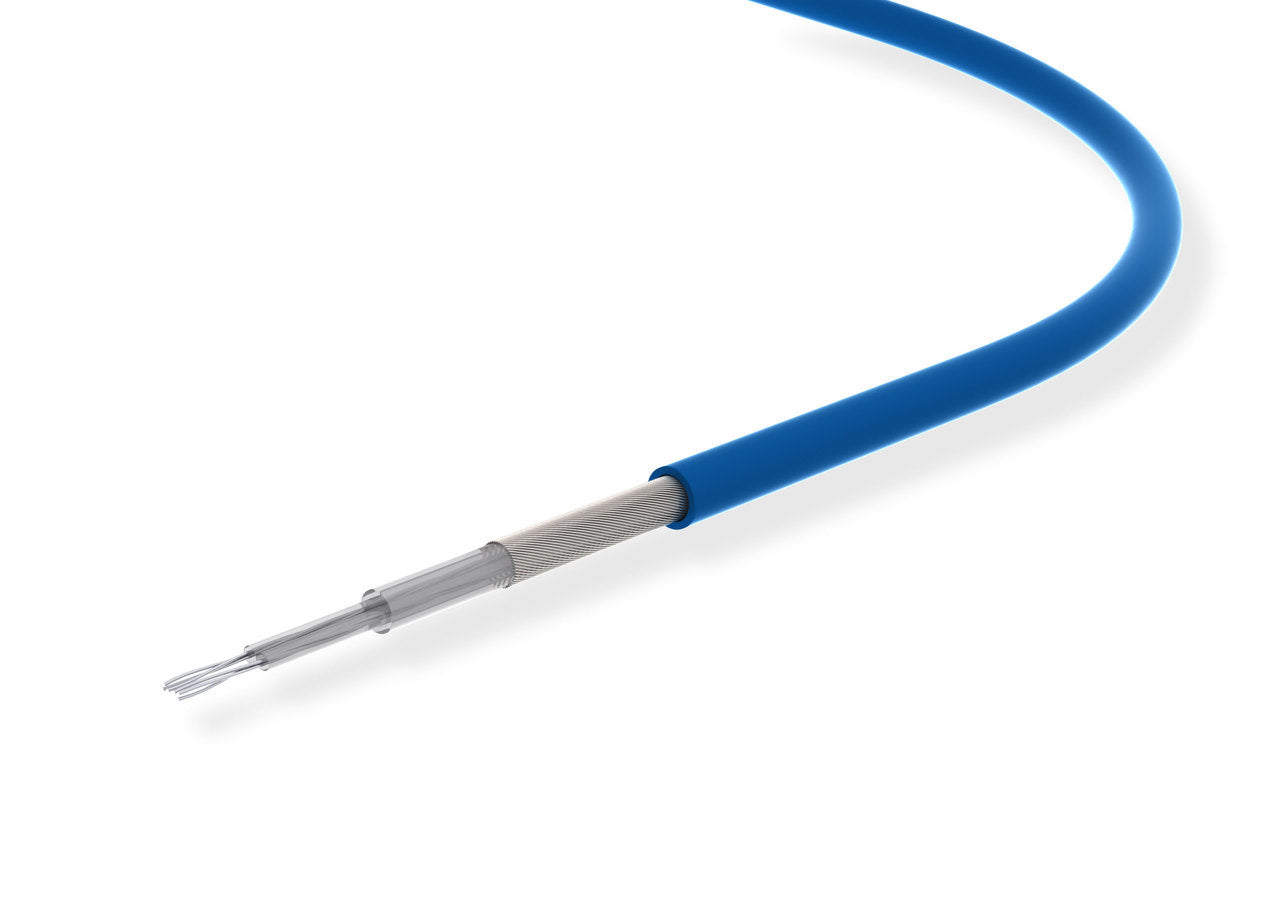

Cable Specs:

  • Cable Thickness: 4.3mm (Max)
  • Min Installation Temp: -5°C
  • Max Working Temp: +110°C
  • Cold Tail: 1 No. 2.5 metres long – 3 cores

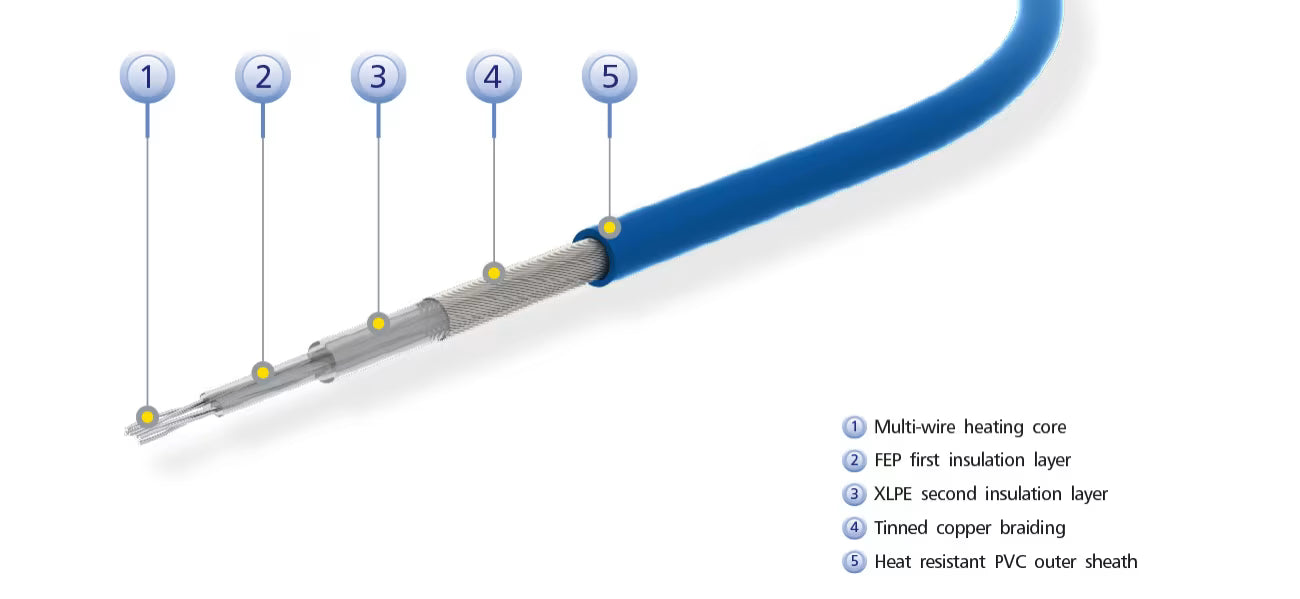

  • Insulation: FEP (Teflon) + XLPE
  • Outer Sheath: Heat Resistant PVC
  • Output Power Tolerance: +5%, -10%
  • Min Bending Radius: 5D
  • IP Rating: IPX7

Decoupling Membrane Specs:

  • Material: Polyethylene (PE) film top; Polypropylene (PP) non-woven bottom
  • Weight: 1000g/sqm
  • Thickness: 5.6mm
  • Wire Cable Diameter: 3.6 - 4.2mm
  • Distance of the studs: 4mm
  • Waterproof: Yes
