Product Description

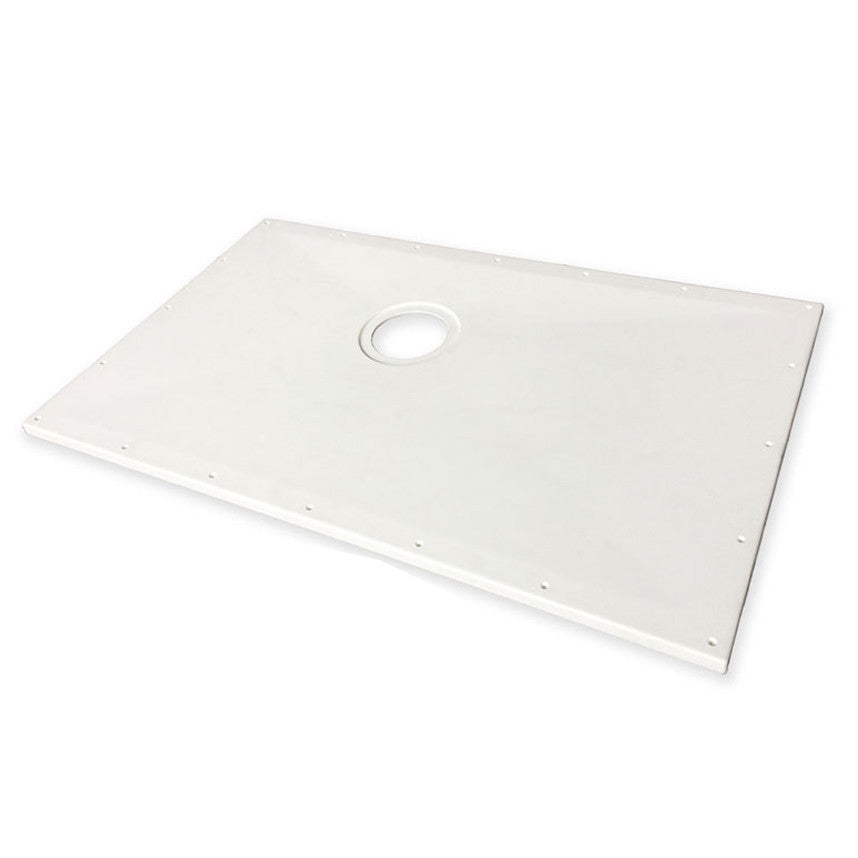

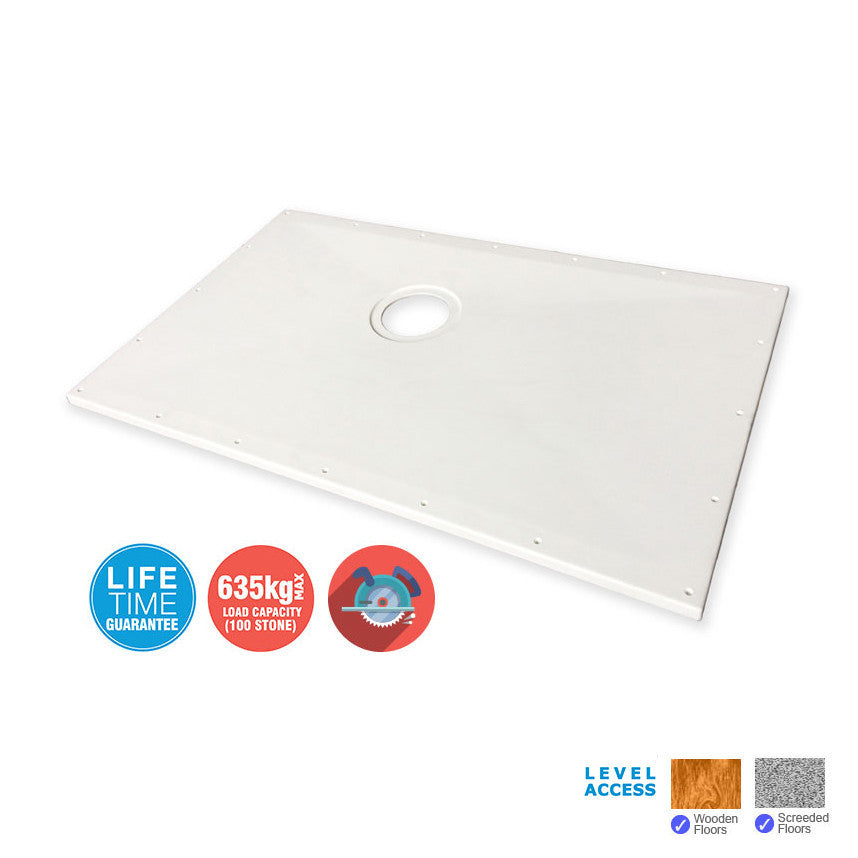

Wetroom shower area with exceptional strength, supporting up to 100 stone / 635kg using ShowerDec
- Level access wetroom shower area concealed beneath vinyl or tiled flooring once installed

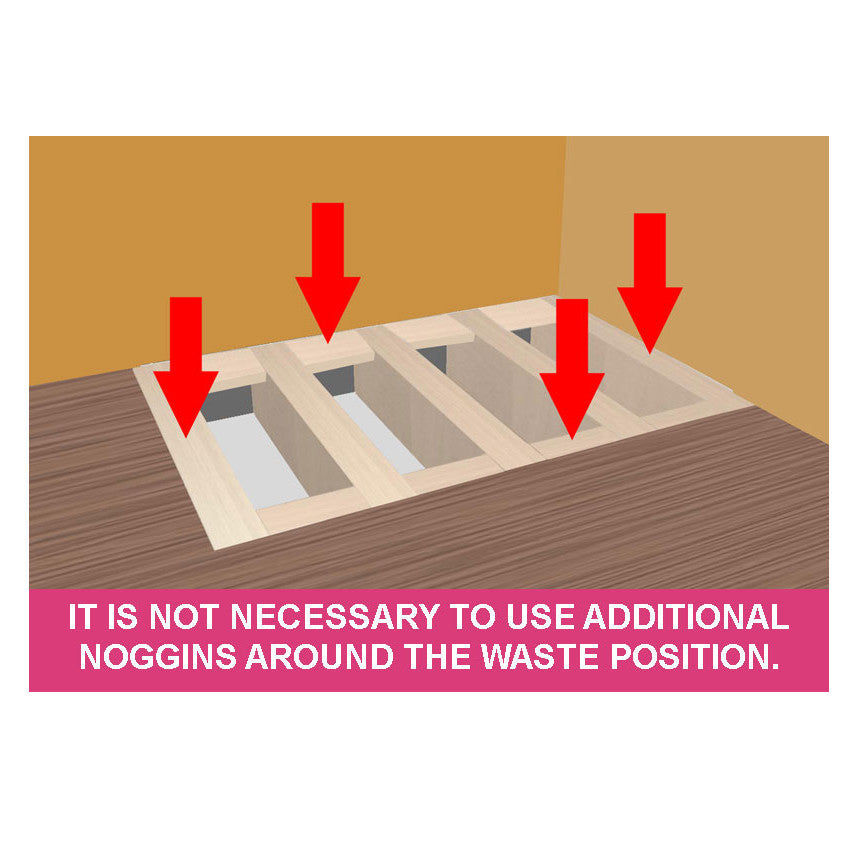

- No additional support required around the waste, helping speed up installation*
- 24mm thick to suit installation with existing floorboards
- 40mm flat perimeter area for door placement and improved water retention
- Larger showering area, ideal for wheelchair access
- Lifetime guarantee
*Tested with 16” joist centres (47mm width) and supported around outer edges. No additional support required around the waste area.
Installer Friendly:

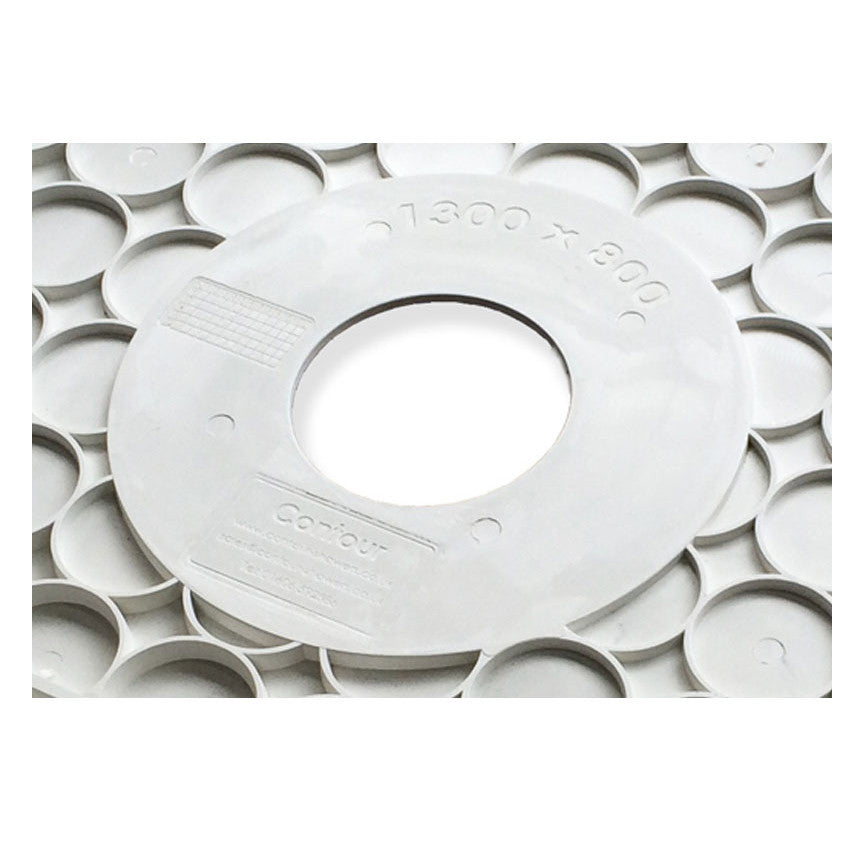

- No raised collar on the underside of the waste for easier timber floor installation

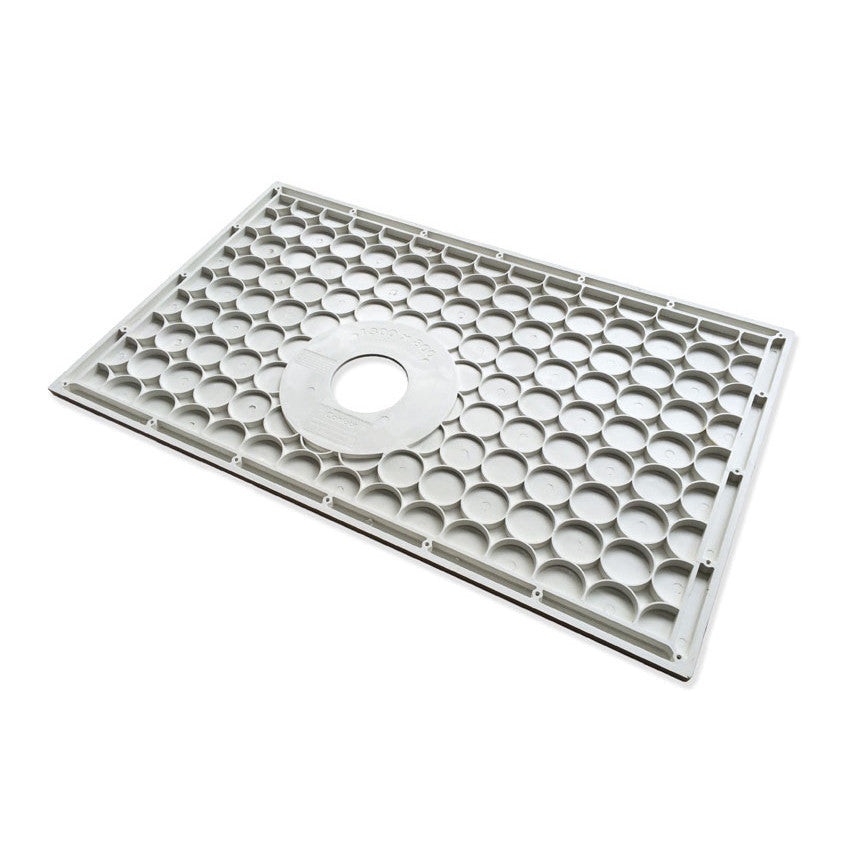

- Circular ribbed underside helps prevent movement on concrete or screed floors
- Textured top surface for strong adhesion with vinyl flooring
- Offset waste positions to help avoid joists
- Pre-formed fixing points for secure installation
- Can be cut to size using a circular saw or jigsaw
- Suitable for timber and screeded floors
Technical Summary:
- Manufactured using SMC process with resin and fibreglass for strength and consistency
- Tested to withstand up to 100 stone / 635kg across the full surface
- Integrated falls of approximately 2%–2.5% for effective drainage

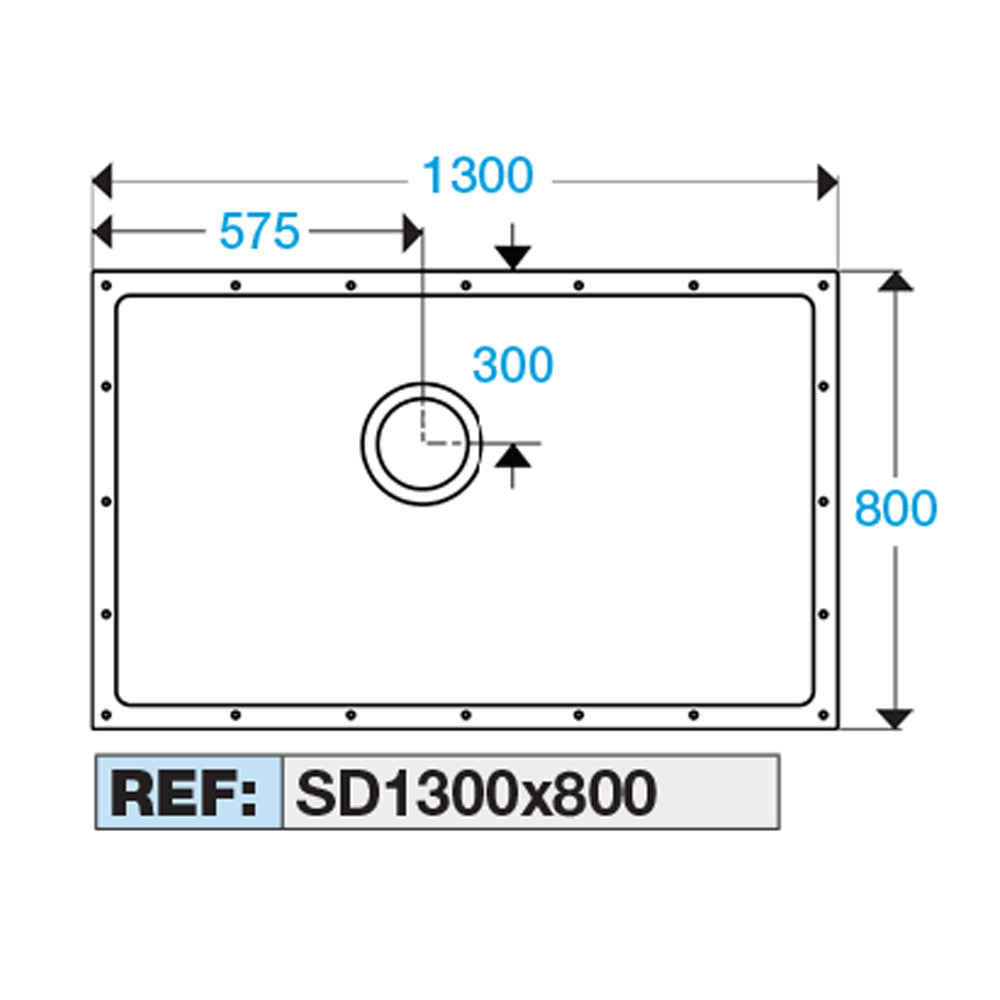

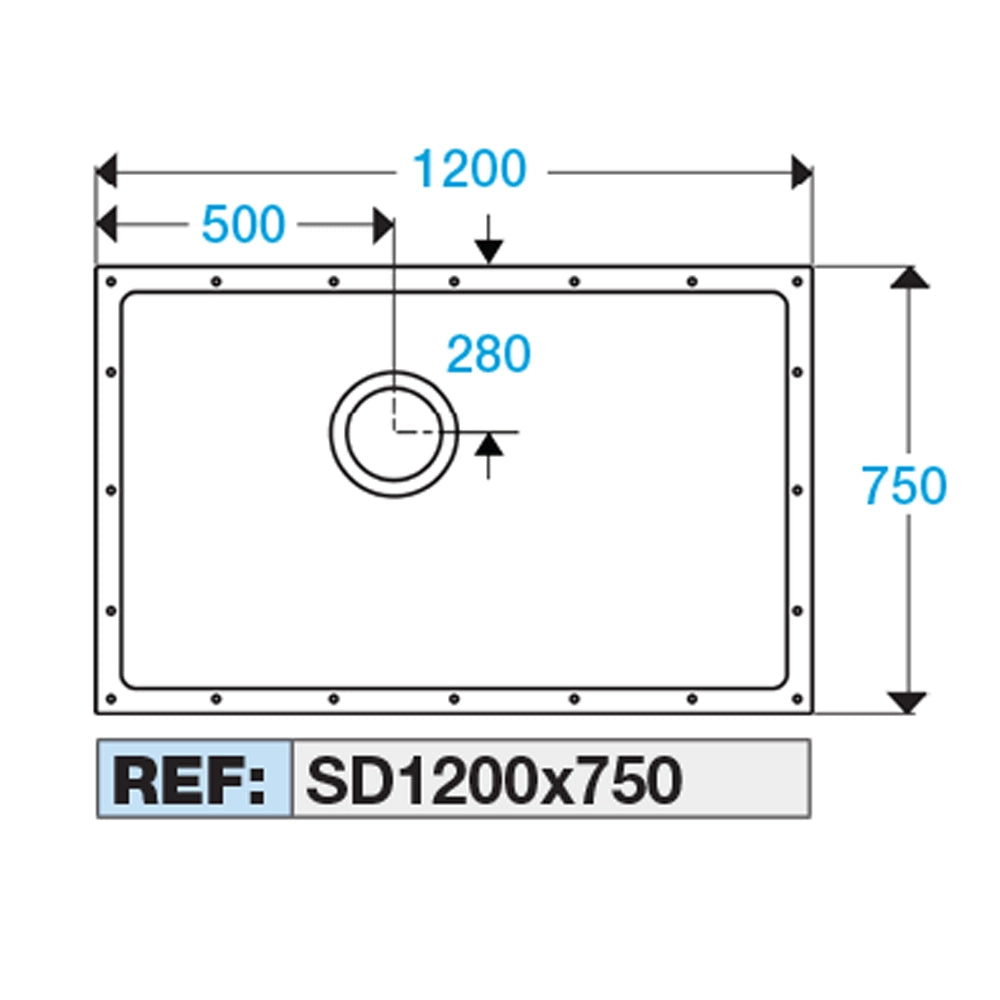

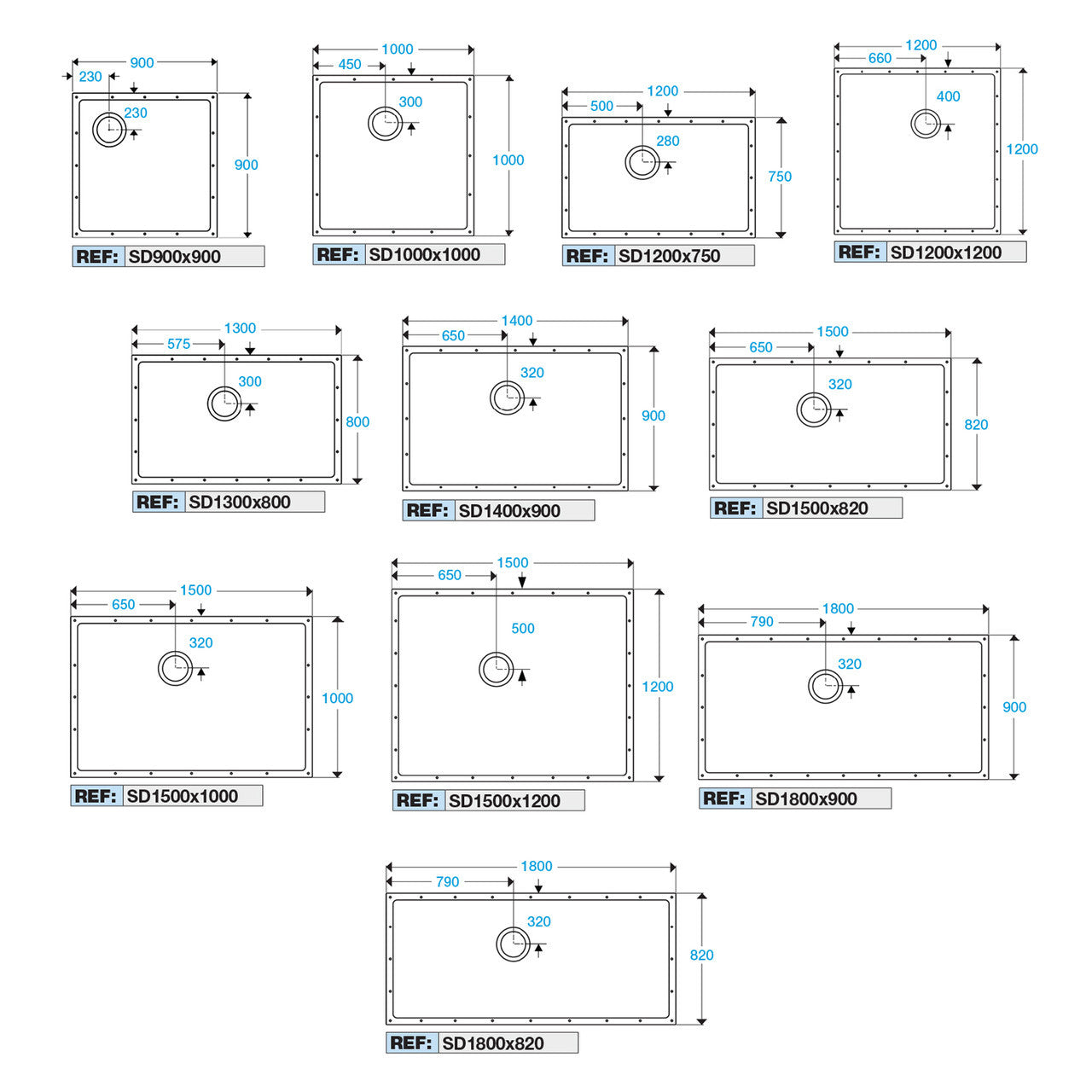

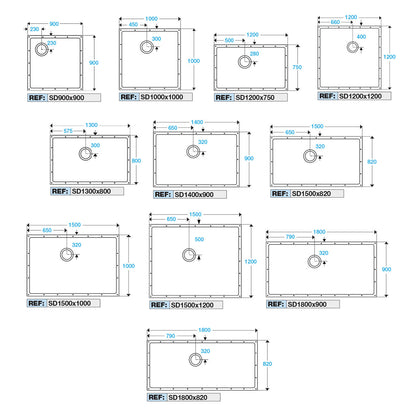

Available Sizes:

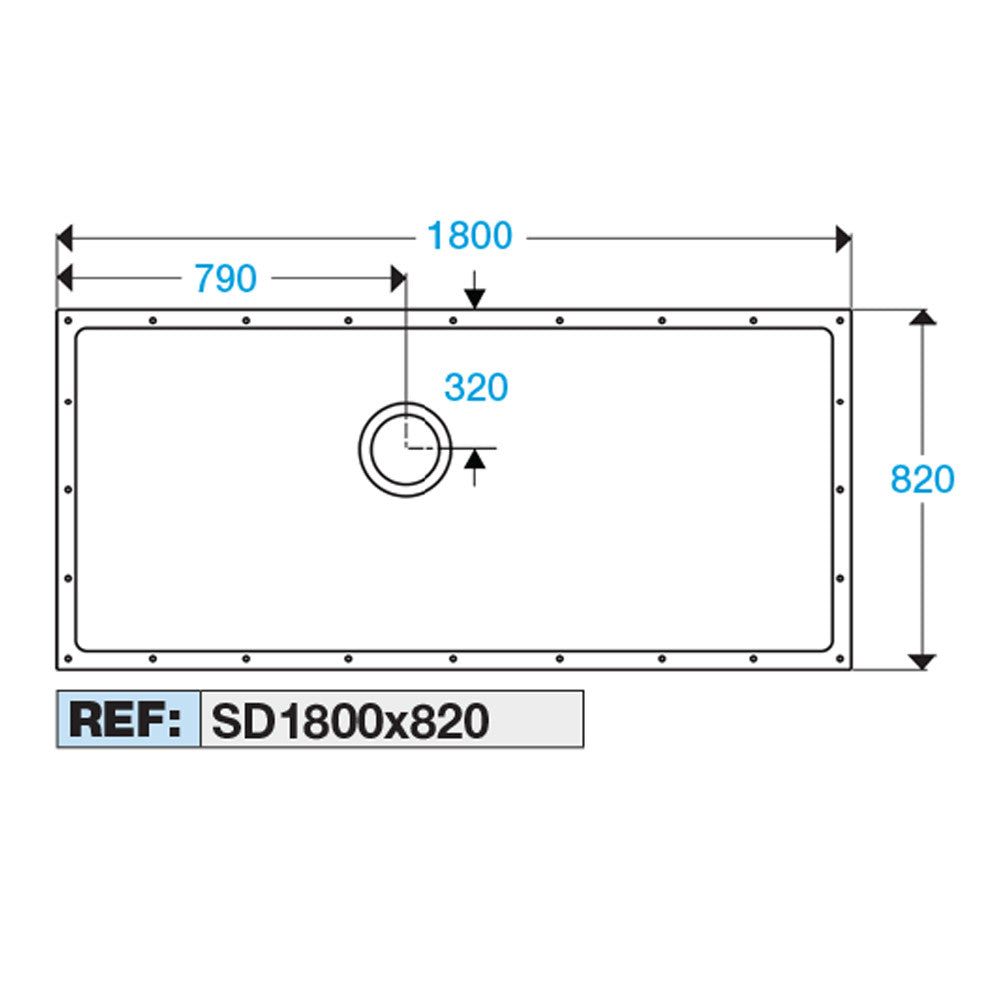

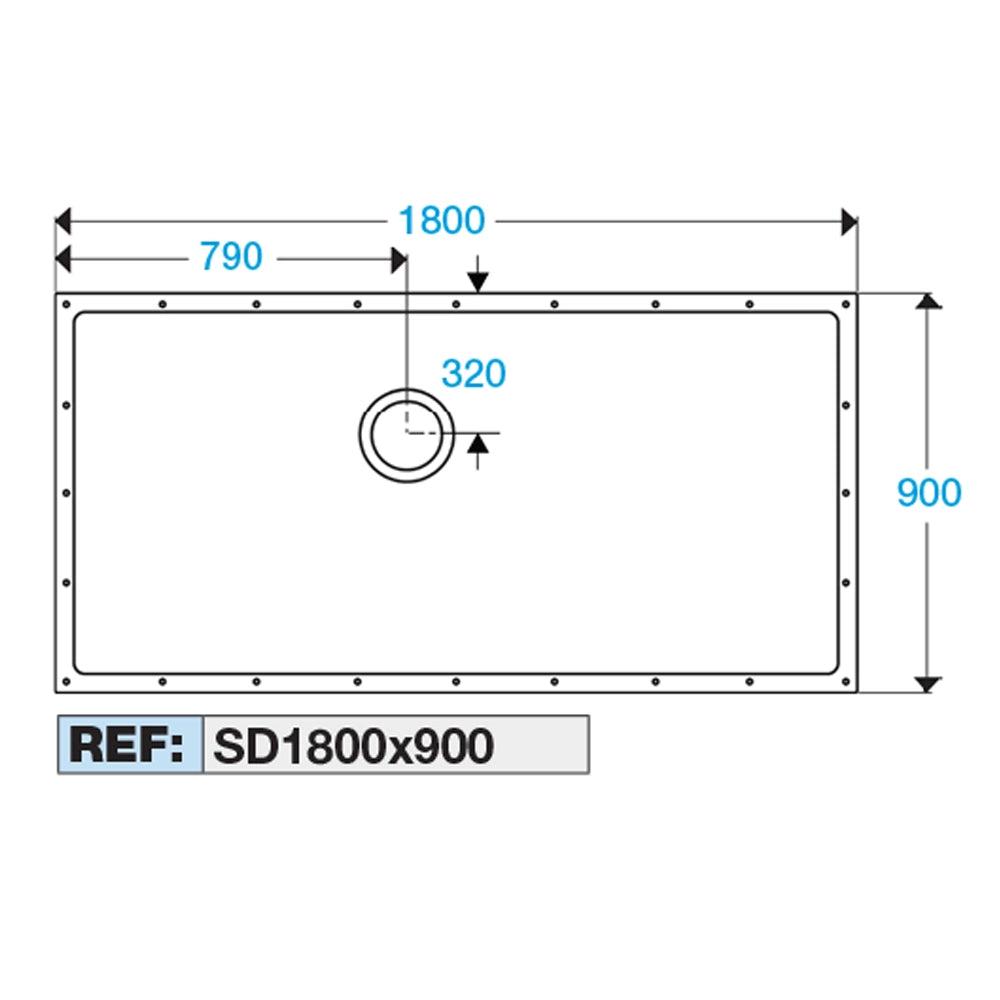

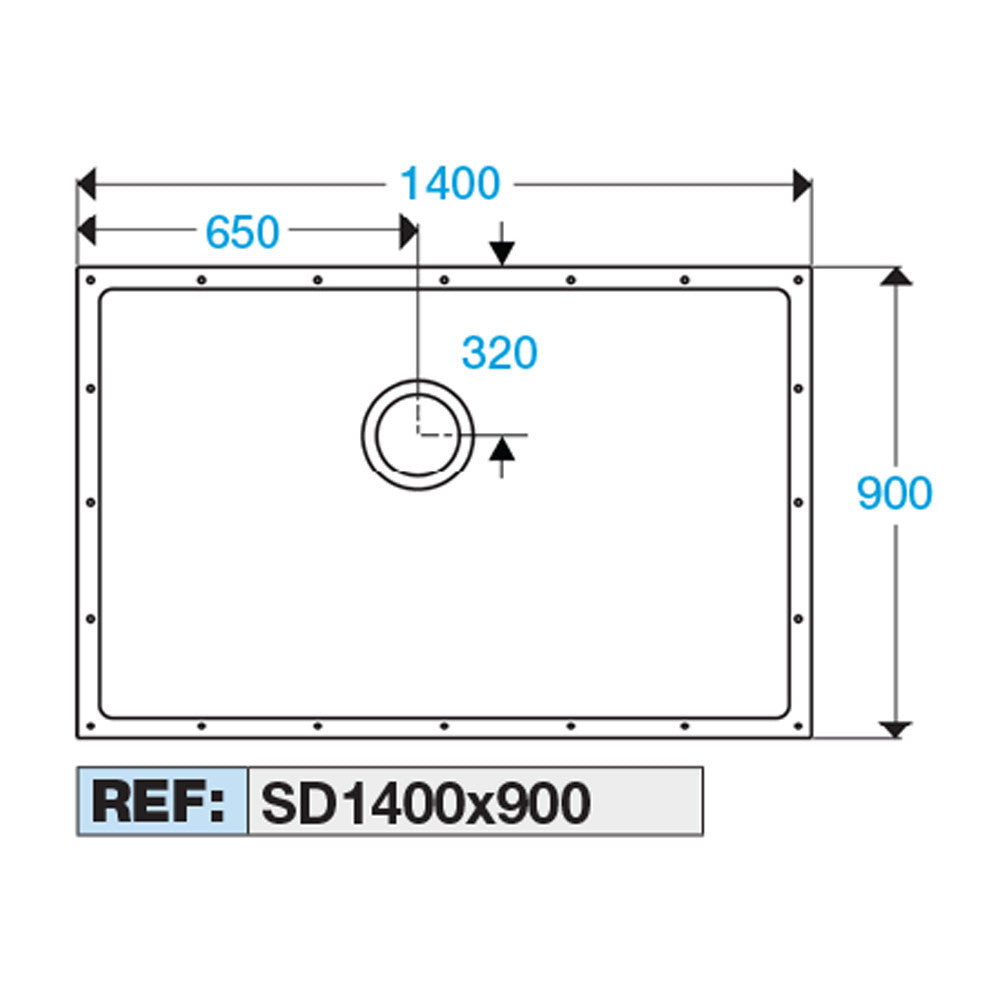

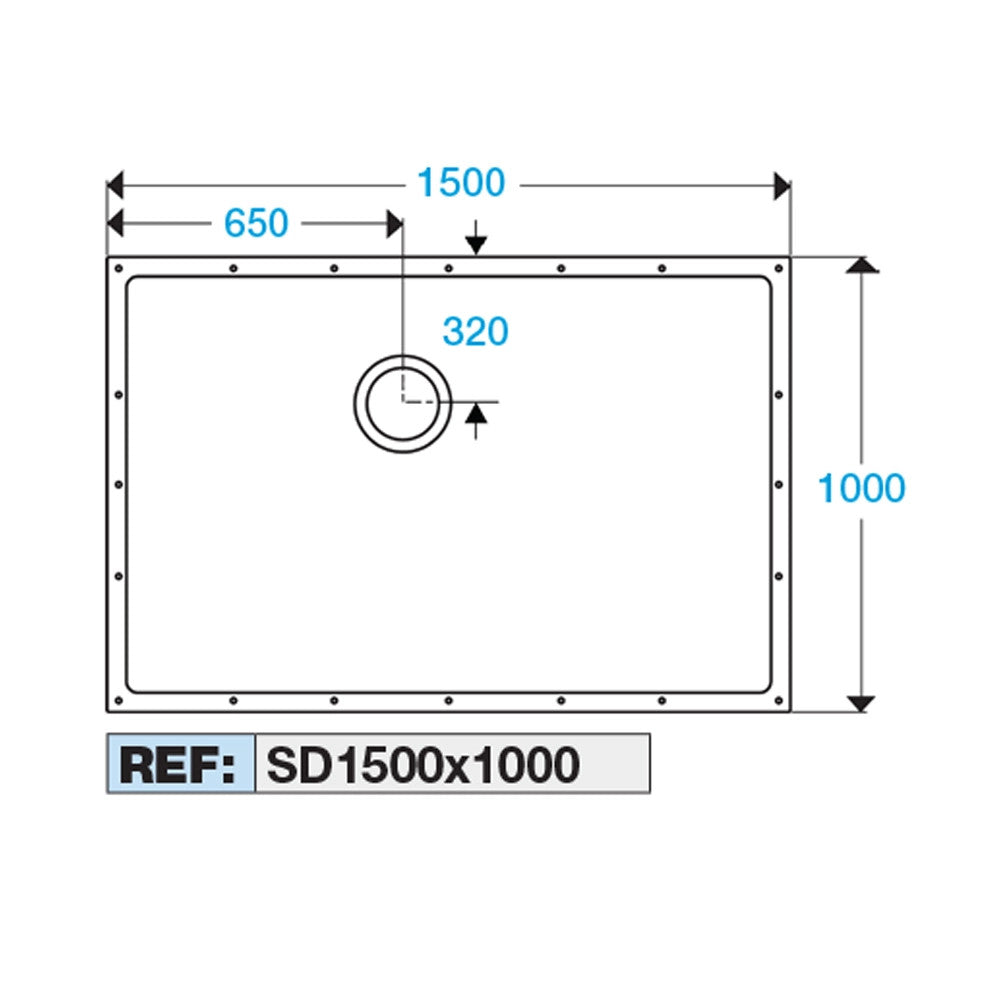

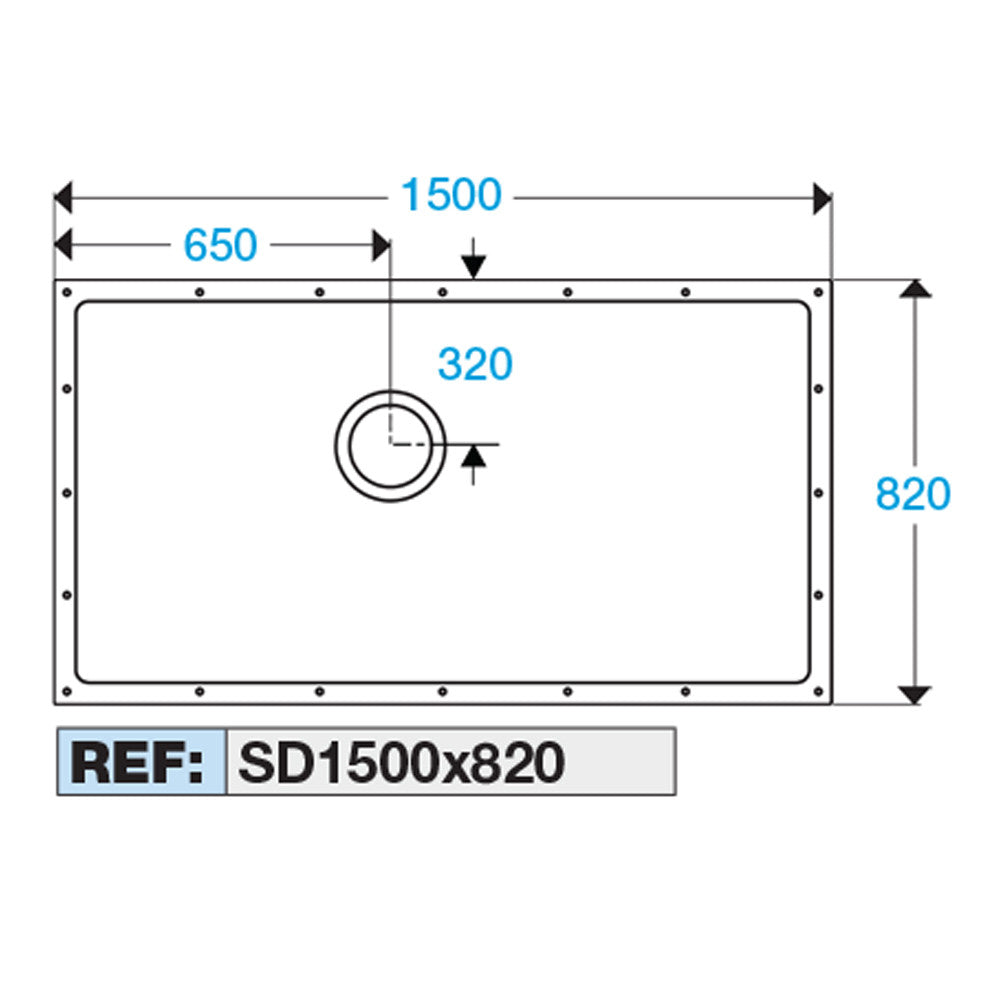

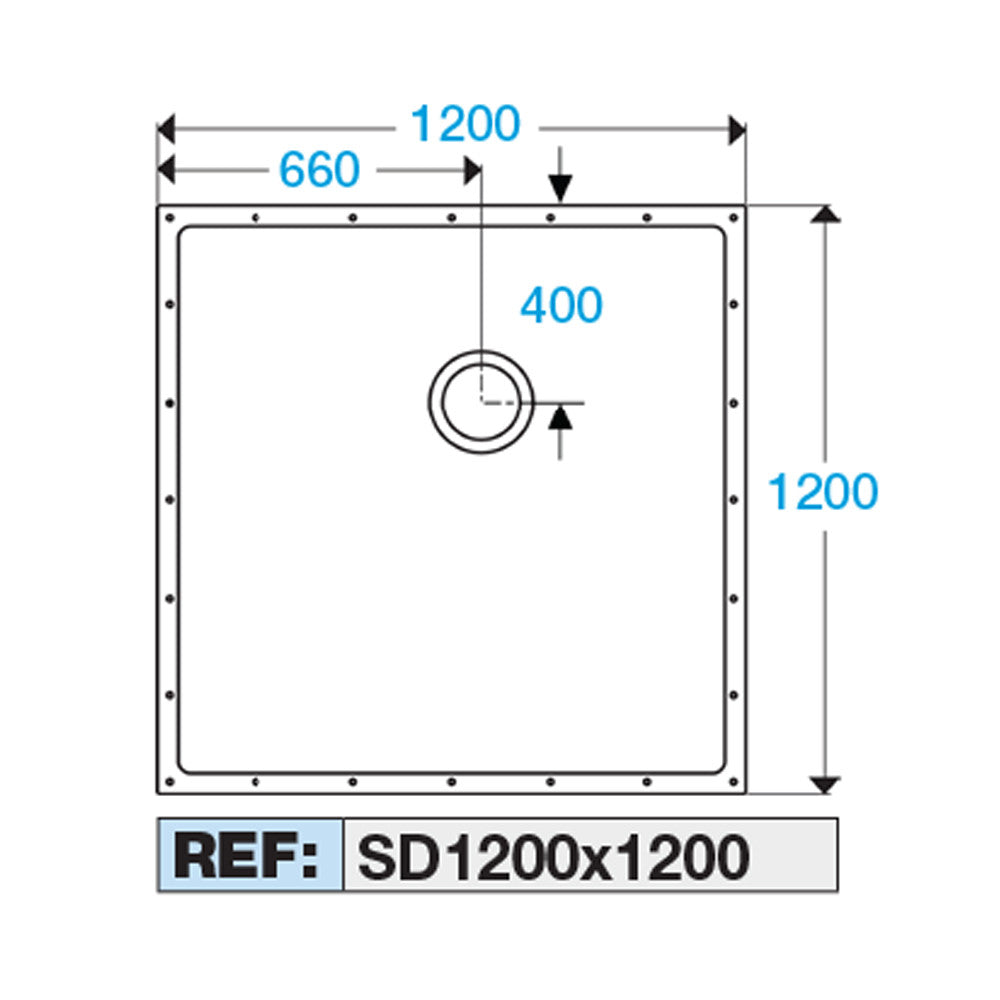

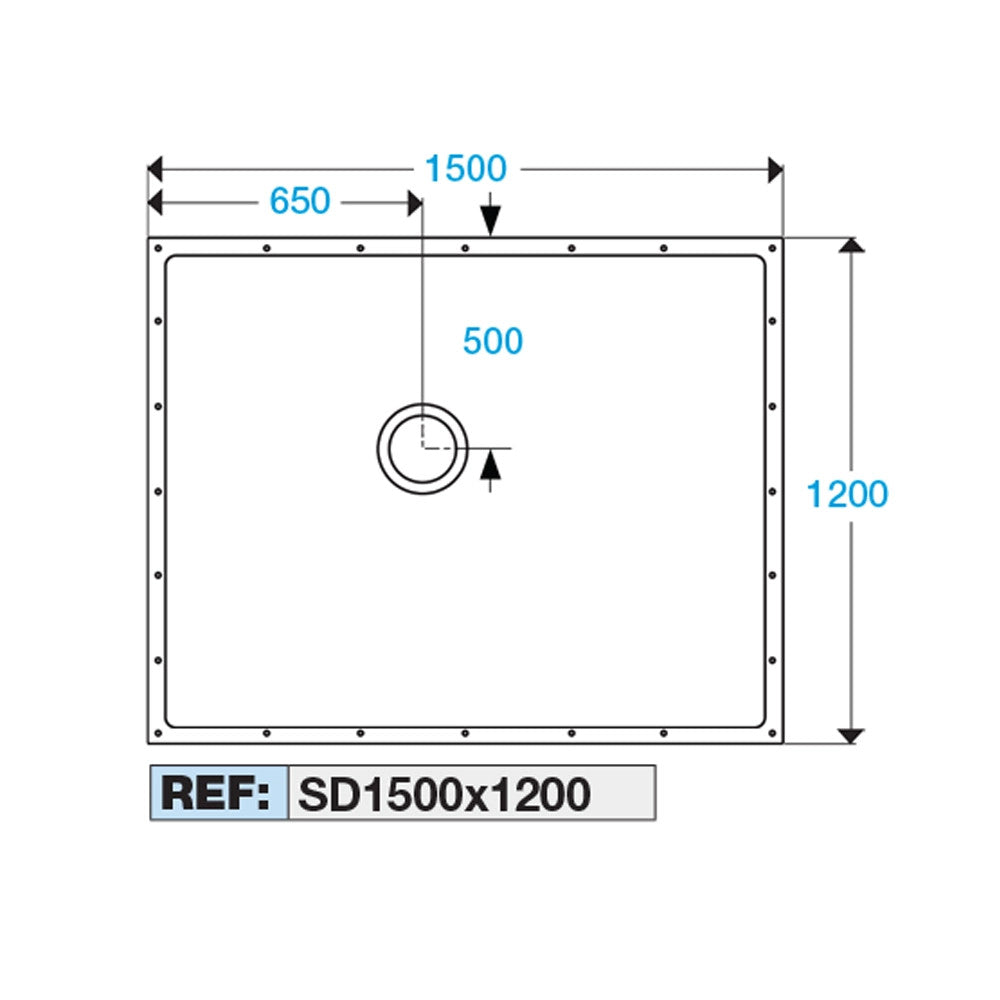

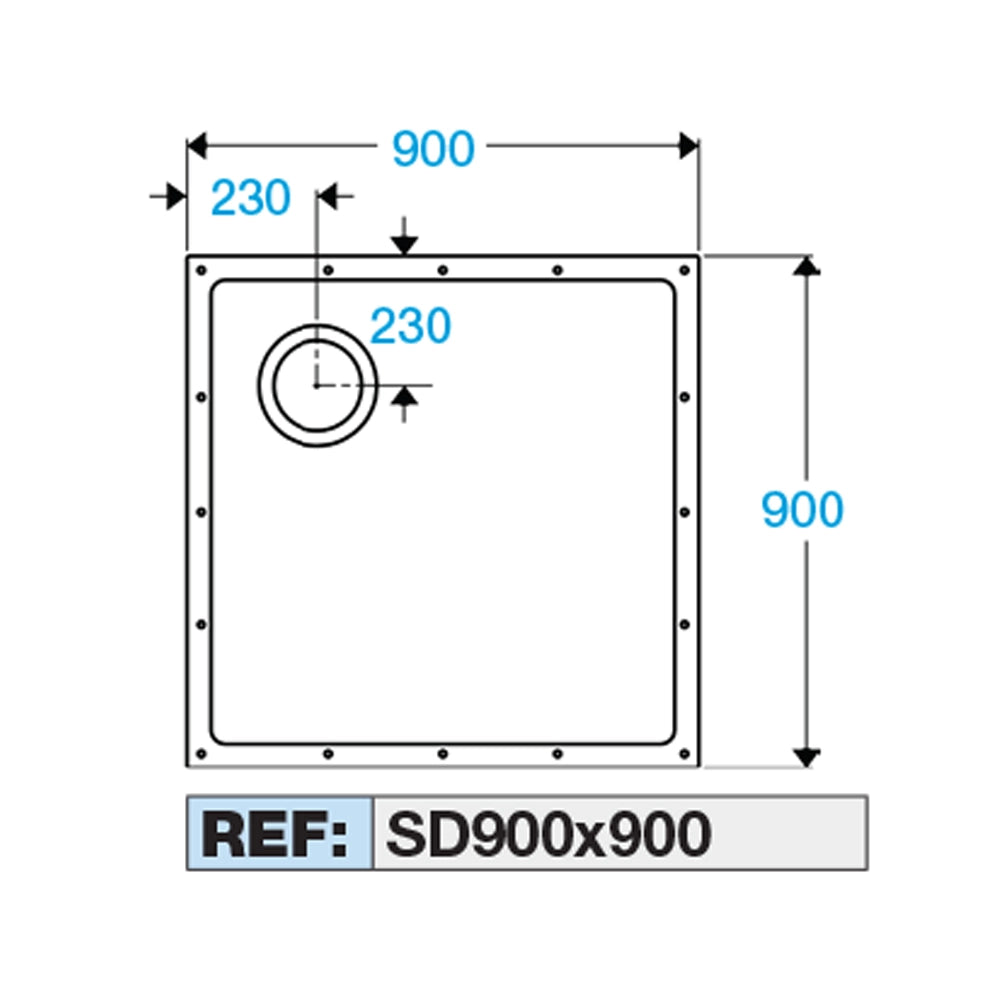

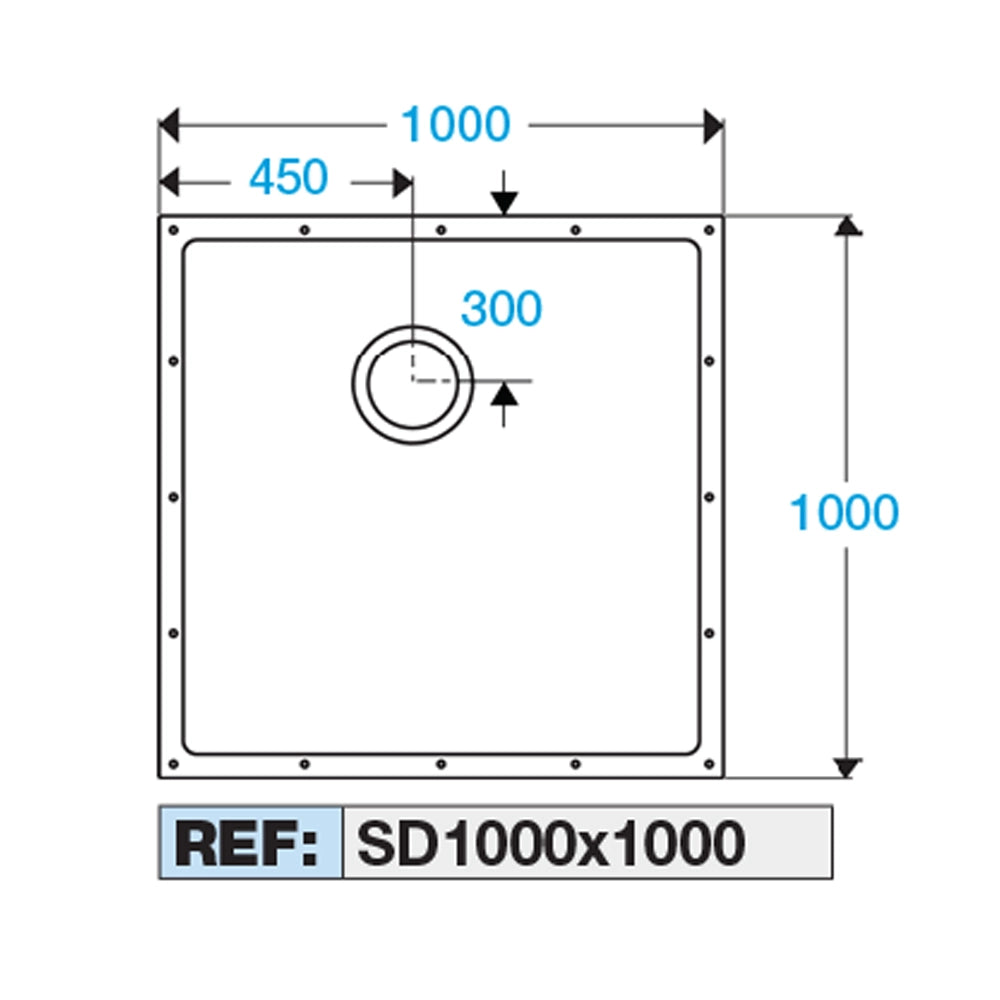

900 x 900mm | 1000 x 1000mm | 1200 x 750mm | 1200 x 1200mm | 1300 x 800mm | 1400 x 900mm | 1500 x 820mm | 1500 x 1000mm | 1500 x 1200mm | 1800 x 800mm | 1800 x 900mm
Drain Options (if selected):

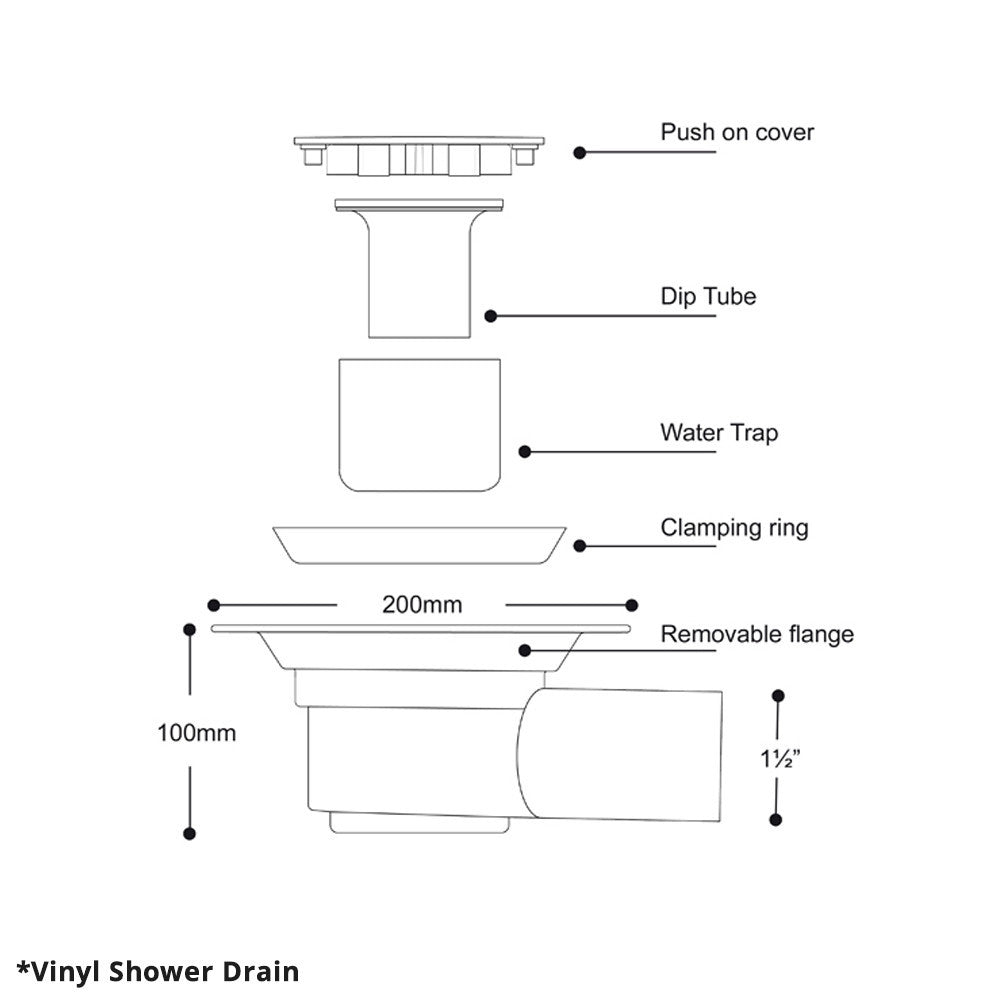

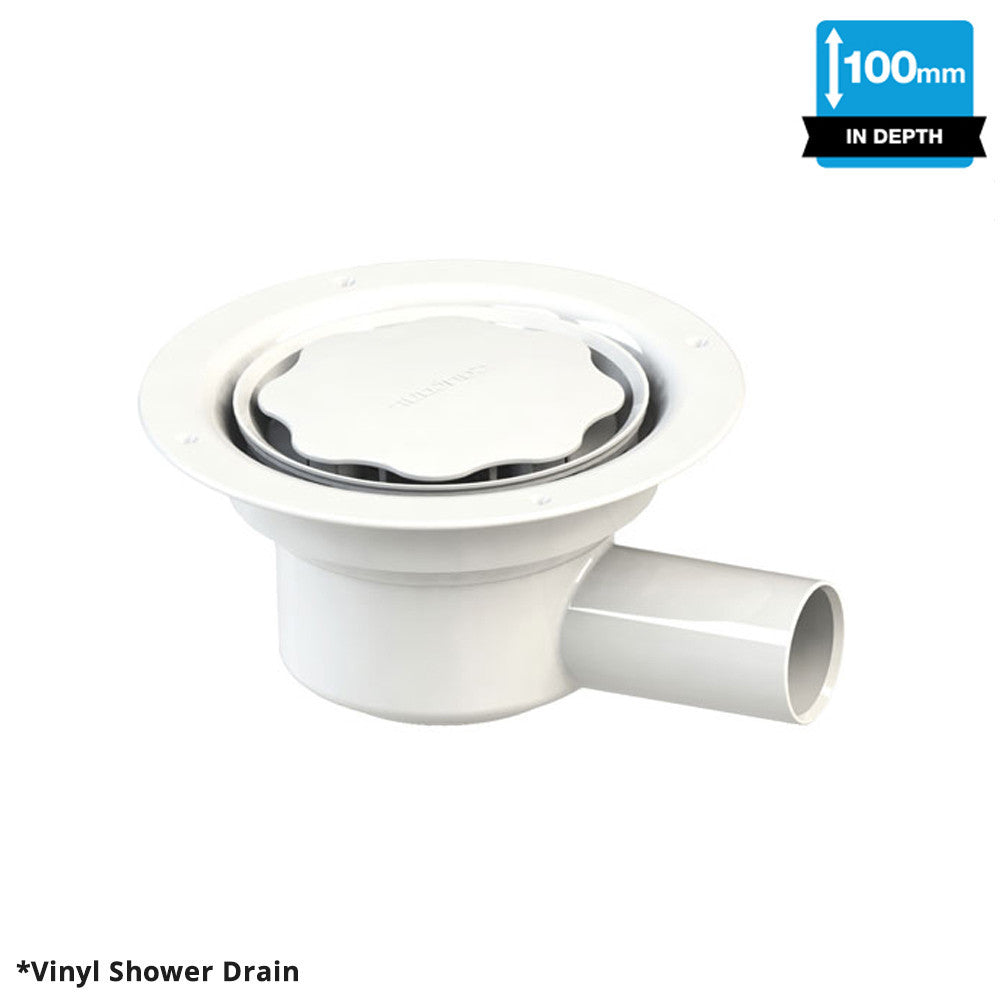

CTW01 Vinyl Shower Drain:
- 2-part 50mm water seal trapped waste
- Bolt-together design for easy installation
- Removable inner cup for cleaning
- Flow rate over 26L per minute
- 1½” outlet
- 100mm depth
- Tested to EN274-2:2002
- Manufactured in white ABS and suitable for wheelchair loadings

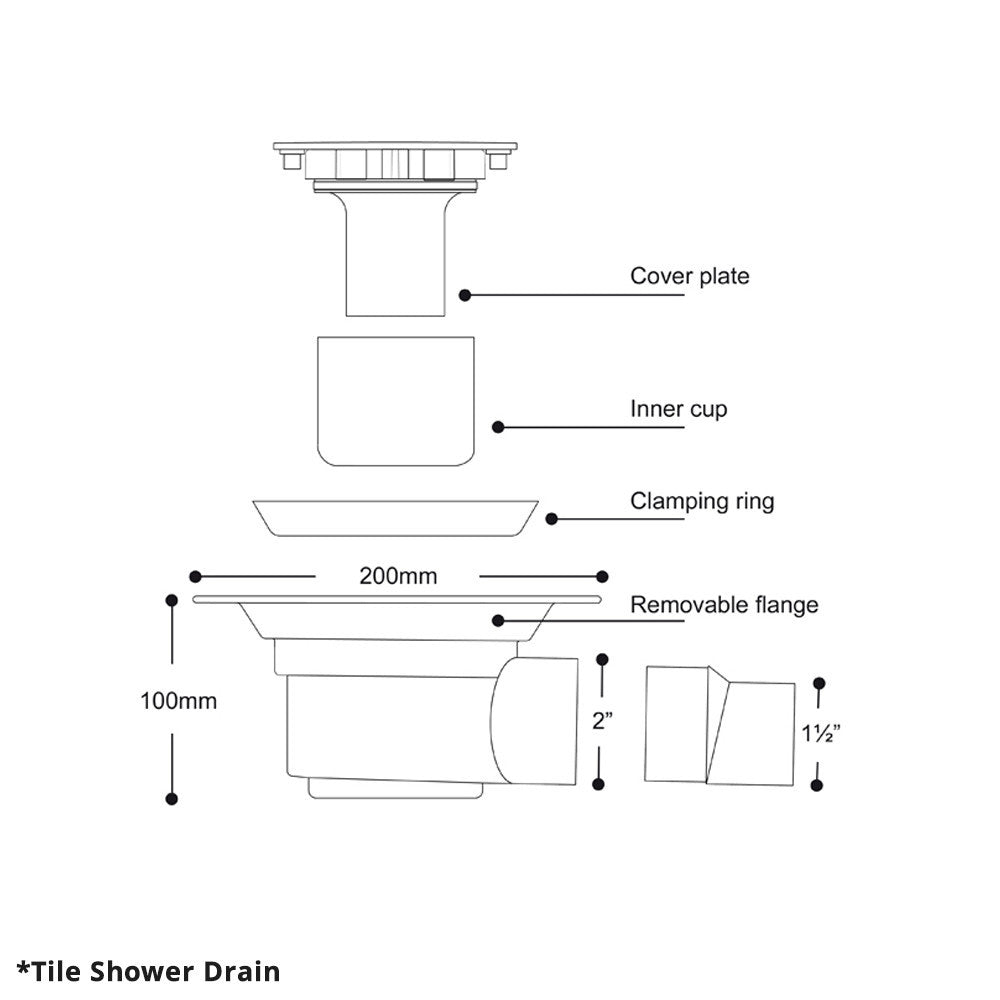

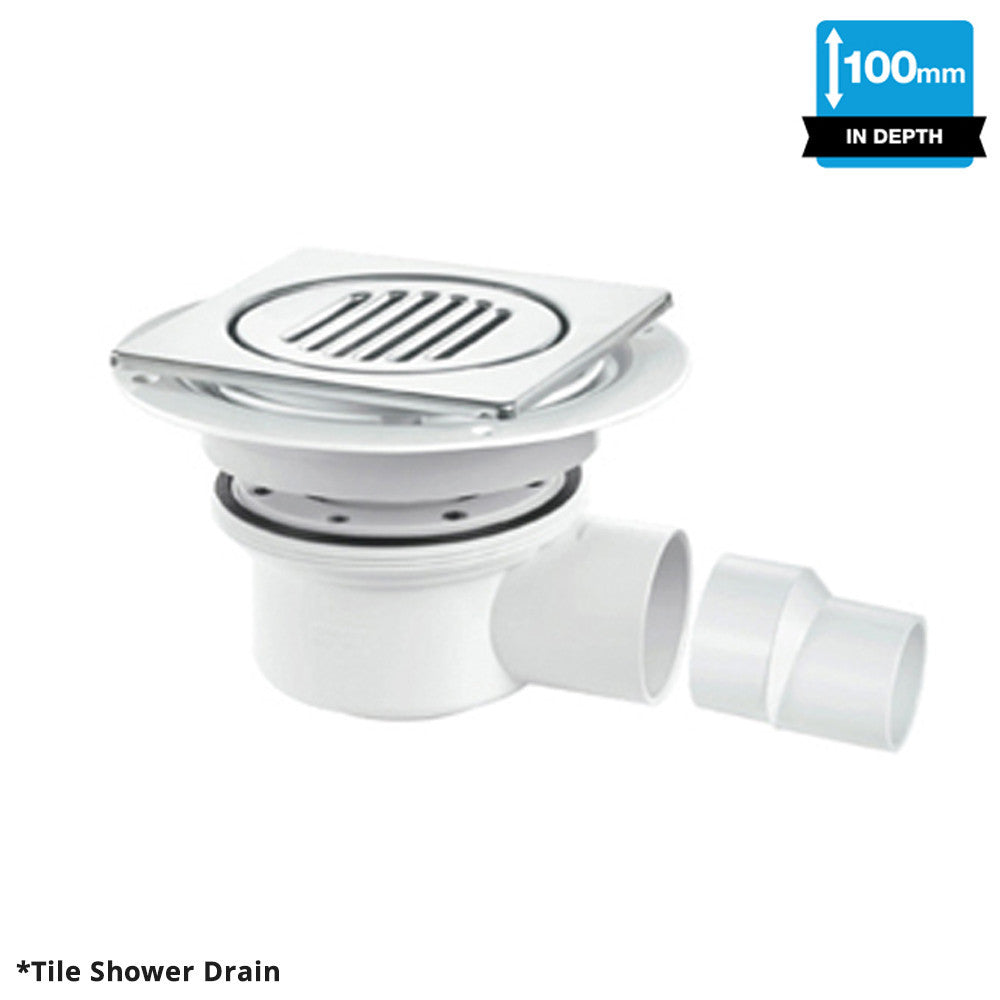

TSG52 Tile Shower Drain:
- 2-part 50mm water seal trapped gully
- Flow rate over 40L per minute
- 150mm stainless steel square top (8mm depth)
- 1½” outlet
- 100mm depth
- Push-on cover plate with top access for cleaning
- Manufactured in white ABS and suitable for wheelchair loadings

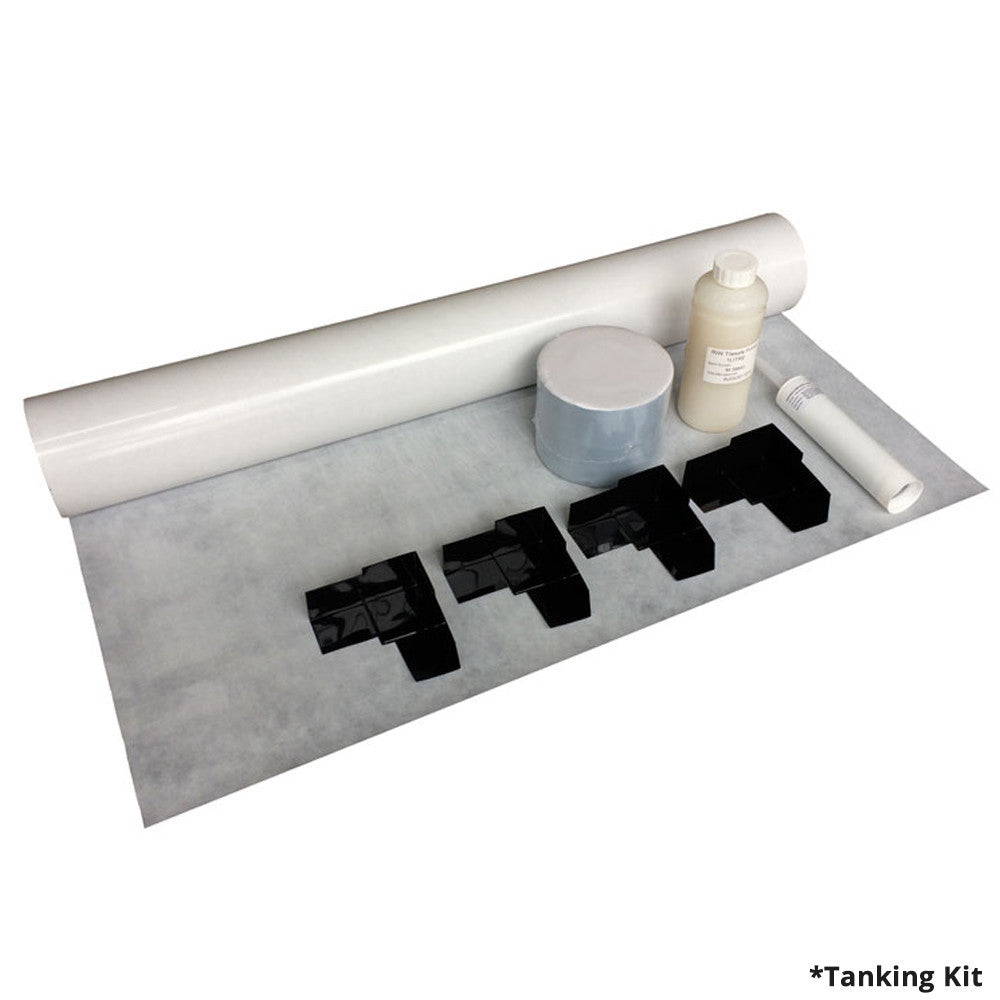

Optional Wetroom Tanking Kits:
Contour 5m² Kit:
- Self-adhesive waterproof membrane
- Provides permanent waterproof bond before tiling
- Suitable for timber, masonry, concrete, plasterboard and existing tiles
- Ready to tile immediately after application
- 1mm butyl waterproof layer with fleece backing
- Compatible with underfloor heating (max 32°C, electric max 150W)
- Lifetime guarantee when installed correctly
- Includes: 5m² membrane, 500ml primer, 10m tape, jointing compound and 4 internal corners
Thermopanel Tanking Kits:
5m² Kit:
- 5m x 1m butyl waterproof membrane
- 5m x 100mm reinforcement tape
- 2 x internal corners
- 300ml butyl sealant
- 1L solvent-free primer
10m² Kit:
- 10m x 1m butyl waterproof membrane
- 10m x 100mm reinforcement tape
- 4 x internal corners
- 300ml butyl sealant
- 1L solvent-free primer
